InGaAs PIN photodiode array

G8909-01

Photodiode array for DWDM monitor


Features
- 250 μm pitch, 40 ch parallel readout
- Low crosstalk
- Precise chip position tolerance: ±0.05 mm

Number of elements 40
Package Ceramic
Package Category Surface mount type
Cooling Non-cooled
Spectral response range 0.9 to 1.7 μm
Peak sensitivity wavelength (typ.) 1.55 μm
Photosensitivity (typ.) 0.95 A/W
Dark current (max.) 0.2 nA
Cutoff frequency (typ.) 1000 MHz
Terminal capacitance (typ.) 1.4 pF
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

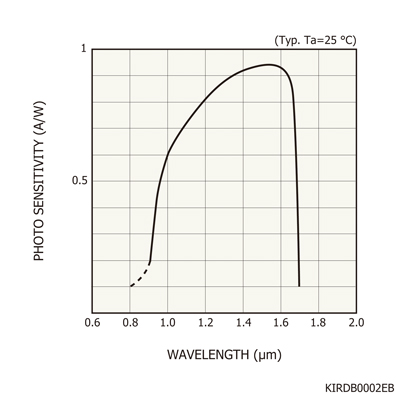

Spectral response

Dimensional outline (unit: mm)
