InGaAs PIN photodiode array

G6849-01

Quadrant type


Features
- Active area G6849-01: φ1 mm quadrant element
- Low noise
- High reliability

Photosensitive area φ1 mm
Number of elements 1 (quadrant)
Package Metal
Package Category TO-5
Cooling Non-cooled
Spectral response range 0.9 to 1.7 μm
Peak sensitivity wavelength (typ.) 1.55 μm
Photosensitivity (typ.) 0.95 A/W
Dark current (max.) 1.5 nA
Cutoff frequency (typ.) 120 MHz
Terminal capacitance (typ.) 25 pF
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

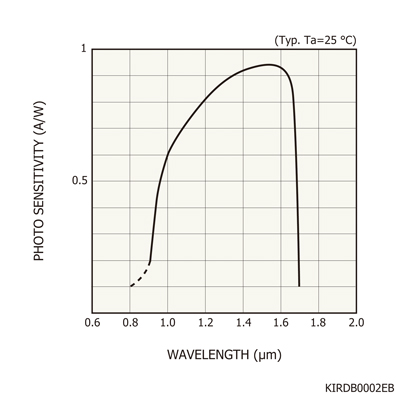

Spectral response

Dimensional outline (unit: mm)

Related documents
