InGaAs PIN photodiode

G11193-10R

Small package, surface mount type, Active area: Φ1.0 mm


Features
- Small SMD (surface mount device) package
- Low noise, low dark current
- Low price

Photosensitive area φ1.0 mm
Number of elements 1
Package Ceramic
Package Category Surface mount type
Cooling Non-cooled
Spectral response range 0.9 to 1.7 μm
Peak sensitivity wavelength (typ.) 1.55 μm
Photosensitivity (typ.) 1 A/W
Dark current (max.) 4 nA
Cutoff frequency (typ.) 60 MHz
Terminal capacitance (typ.) 55 pF
Noise equivalent power (typ.) 1.4×10-14 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, -3 dB, Terminal capacitance: VR=5 V, f=1 MHz

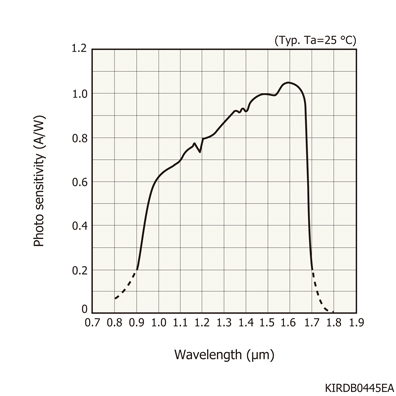

Spectral response

Dimensional outline (unit: mm)
