InGaAs PIN photodiode
|Photosensitive area||φ2.0 mm|
|Number of elements||1|

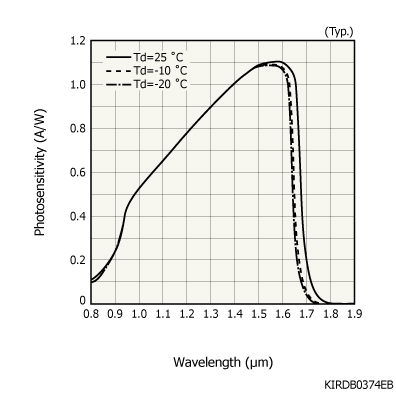

|Spectral response range||0.9 to 1.65 μm|
|Peak sensitivity wavelength (typ.)||1.55 μm|
|Photosensitivity (typ.)||1.1 A/W|
|Dark current (max.)||0.2 nA|
|Cutoff frequency (typ.)||13 MHz|
|Terminal capacitance (typ.)||250 pF|
|Noise equivalent power (typ.)||2.7×10-15 W/Hz1/2|
|Measurement condition||Typ. Tc=-20 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=1 V, Cutoff frequency: VR=1 V, RL=50 Ω, Terminal capacitance: VR=1 V, f=1 MHz|
