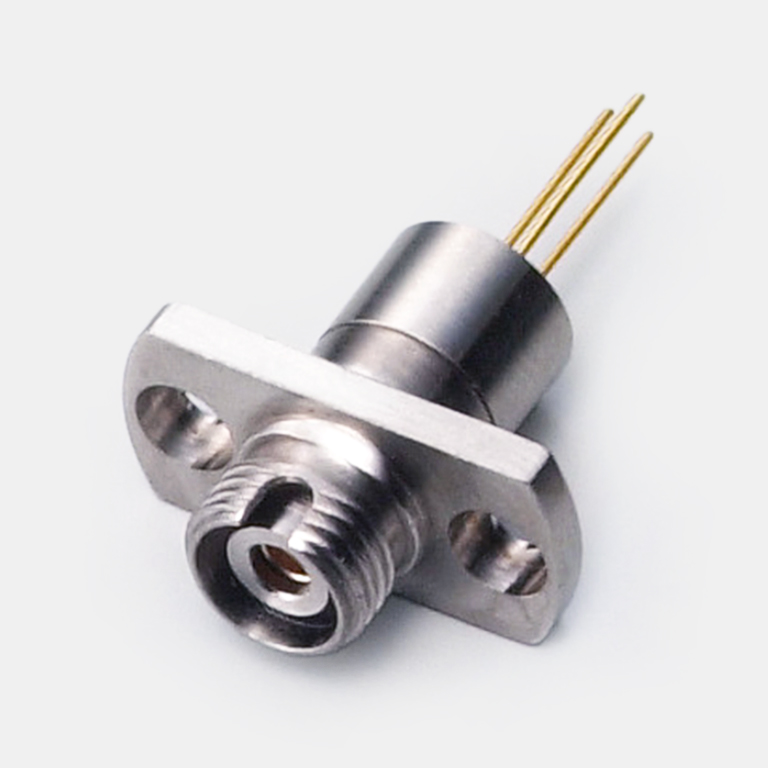

InGaAs PIN photodiode

G14942-32

Angled PC compatible, receptacle type

This is a high-speed photosensor developed for Doppler LiDAR. This is a receptacle type compatible with FC/Angled PC, and has a built-in high-speed InGaAs PIN photodiode.


Features
- High-speed response: 2 GHz typ.
- Low dark current: 20 pA typ.
- FC/Angled PC compatible



Number of elements 1
Package Receptacle
Package Category FC panel
Cooling Non-cooled
Spectral response range 0.9 to 1.7 μm
Peak sensitivity wavelength (typ.) 1.55 μm
Photosensitivity (typ.) 0.95 A/W
Dark current (max.) 0.4 nA
Cutoff frequency (typ.) 2000 MHz
Terminal capacitance (typ.) 1 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, λ=1.55 μm, -3 dB, Terminal capacitance: VR=5 V, f=1 MHz, unless otherwise noted

Dimensional outline (unit: mm)
