InGaAs PIN photodiode

G6854-01

Spherical lens window package for efficient fiber coupling


Features
- Easy optical axis alignment
- High fiber coupling efficiency
- CD package
- Package weldable by YAG laser
- Spherical lens window with AR coating minimizes return light input

Photosensitive area φ0.08 mm
Number of elements 1
Package Metal
Package Category TO-18 with CD lens
Cooling Non-cooled
Spectral response range 0.9 to 1.7 μm
Peak sensitivity wavelength (typ.) 1.55 μm
Photosensitivity (typ.) 0.95 A/W
Dark current (max.) 0.4 nA
Cutoff frequency (typ.) 2000 MHz
Terminal capacitance (typ.) 1 pF
Noise equivalent power (typ.) 2×10-15 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, λ=1.3 μm -3 dB, Terminal capacitance: VR=5 V, f=1 MHz

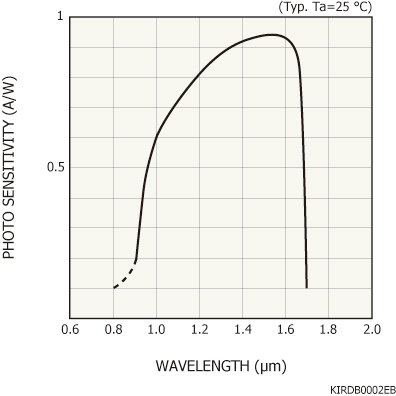

Spectral response

Dimensional outline (unit: mm)
