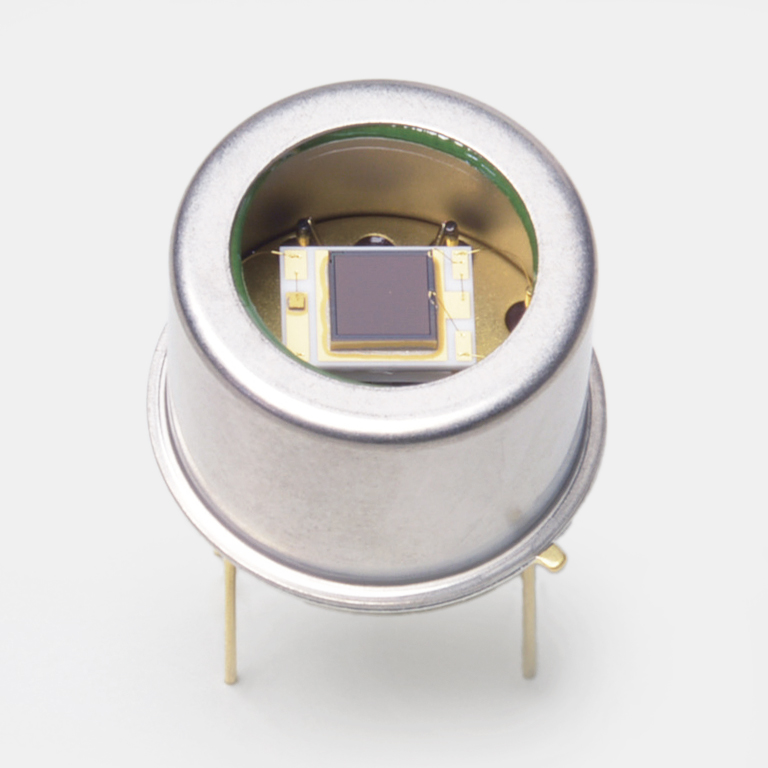

MPPC

S13362-1350DG

Significantly reduced crosstalk, low afterpulses
Cooled type, Photosensitive area: 1.3 × 1.3 mm

The S13362 series can reduce dark count by cooling in addition to low afterpulses and low crosstalk of the S13360 series. The S13362 series integrates the S13360 series with thermoelectric cooler. The photosensitive area is available in two sizes of 1.3 × 1.3 mm and 3.0 × 3.0 mm.


Features
- Significantly reduced crosstalk
- Low afterpulses
- Superior photon counting capability
- Low voltage (VBR=51.1 V typ.) operation
- High gain: 105 to 106
- Low dark count (no more than 1/20 the count at normal temperature through cooling)
- Operates with simple readout circuit

Package type Metal (TE-cooled)
Number of channels 1 ch
Effective photosensitive area / ch 1.3 × 1.3 mm
Number of pixels /ch 667
Pixel size 50 μm
Spectral response range 320 to 900 nm
Peak sensitivity wavelength (typ.) 450 nm
Dark count/ch (typ.) 5 kcps
Terminal capacitance/ch (typ.) 60 pF
Gain (typ.) 1.7×106
Measurement condition Ta=25 ℃

Dimensional Outline (Unit: mm)
