Si photodiode array

S10942-01CT

RGB color sensor integrated in small and thin package

The S10942-01CT is a color sensor molded into a plastic package having a 3-channel (RGB) photodiode sensitive to the Red (λ=590 nm Min.), Green (λ=480 to 600 nm) and Blue (λ=400 to 540 nm) regions of the spectrum. When compared to the previous model (S9702), the S10942-01CT is signifi cantly miniaturized the package size by 80% in cubic volume and PC board mount space by 77% in area. The S10942-01CT is ideal for RGB-LCD backlight monitors installed in such as mobile phones.


Features
- Small, thin package: 3.0 × 1.6 × 10t mm
- 3-channel (RGB) Si photodiode
- Photosensitive area: 1 × 1 mm/3-segment (RGB)
- RoHS compliant
- Surface mount type

Product type RGB photodiode
Package material Plastic
Package type COB type
Package size 3.0 × 1.6 × 1.0 mm
Photosensitive area 1 × 1 mm
Spectral response range (Blue) 400 to 540, 800 to 1000 nm
Spectral response range (Green) 480 to 600, 760 to 1000 nm
Spectral response range (Red) 590 to 1000 nm
Photosensitivity (Blue) 0.21 A/W
Photosensitivity (Green) 0.25 A/W
Photosensitivity (Red) 0.45 A/W
Dark current (max.) 0.05 nA
Terminal capacitance 12 pF
Rise time 0.1 μs
Operating temperature -25 to +85 deg.C
Storage temperature -40 to +85 deg.C
Note This sensor also has sensitivity in the infraredregion, so cut off infrared light as needed.
Measurement condition Typ. Ta=25 deg.C, per element, Photosensitivity: Red (λ=640 nm), Green (λ=540 nm), Blue (λ=460) , Dark current (all elements): VR=1 V, unless otherwise noted

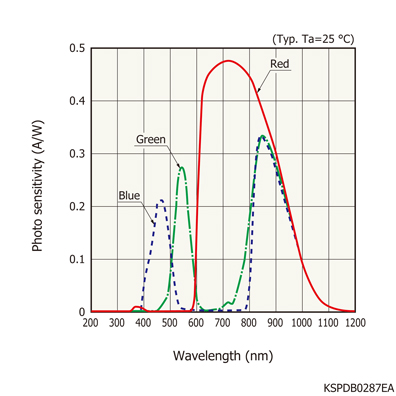

Spectral response

Dimensional outline (unit: mm)
