Si photodiode array

S7505-01

RGB color sensor

The S7505-01 uses a 3-channel (RGB) photodiode having blue, green and red sensitivities, and is molded into a surface mount type package.


Features
-3 ch (RGB) Si photodiode
-Surface mount type plastic package (9 × 9.6 mm)
-High sensitivity

Product type RGB photodiode
Package material Plastic
Package type Surface mount type
Package size 9.0 x 9.6 x 2.1 mm
Photosensitive area 3.2 x 3.2 mm
Spectral response range (Blue) 400 to 540 nm
Spectral response range (Green) 480 to 600 nm
Spectral response range (Red) 590 to 720 nm
Peak sensitivity wavelength (Blue) 460 nm
Peak sensitivity wavelength (Green) 540 nm
Peak sensitivity wavelength (Red) 620 nm
Photosensitivity (Blue) 0.18 A/W
Photosensitivity (Green) 0.23 A/W
Photosensitivity (Red) 0.16 A/W
Dark current (max.) 0.2 nA
Rise time 0.5 μs
Operating temperature -10+60 deg.C
Storage temperature -20+70 deg.C
Measurement condition Typ. Ta=25 deg.C, per element, Photosensitivity: λ=λp, Dark current (all elements): VR=1 V, unless otherwise noted

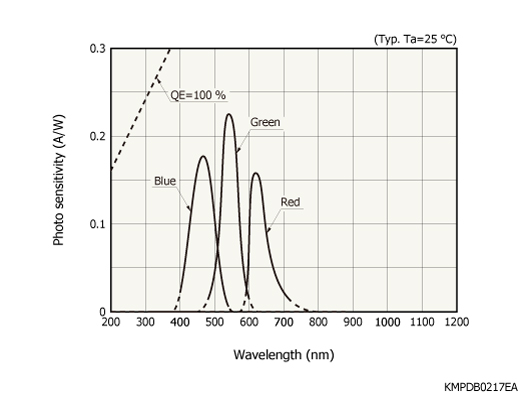

Spectral response

Dimensional outline (unit: mm)
