Photo IC diode

S7183

Linear current amplification of photodiode output



The S7183 consists of a photodiode and a signal processing circuit for amplifying the photocurrent generated from the photodiode up to 1300 times. Despite a small active area, this photo IC provides an output nearly equal to that from photodiode with a 20 × 20 mm active area. The S7183 can be used the same way as a reverse-biased photodiode, and in most cases, it deliver a sufficient output voltage by just connecting a load resistor.


Features
-Clear plastic package
-Operation just as easy as using photodiodes
-Large output current rivaling that of a phototransistor
-Good linearity



Package material Plastic
Package type SIP type
Output Analog
Reverse voltage -0.5 to +16 V
Spectral response range 300 to 1000 nm
Peak sensitivity wavelength 650 nm
Photocurrent 1 mA
Operating temperature -30 to +80 deg.C
Storage temperature -40 to +85 deg.C
Feature Sensitivity in infrared region
Measurement condition Ta=25 ℃, Photocurrent: 2856 K, 100 lx

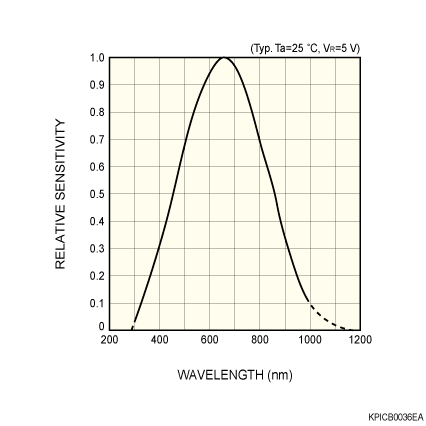

Spectral response
