Light modulation photo IC

S10053-01DT

Fewer detection errors even under disturbance background light (Reel packing)

This light modulation photo IC was developed for optical synchronous detection under disturbance background light. A photodiode, preamplifier, comparator, oscillator, LED driver and signal processing circuit, etc. are all integrated on a monolithic photo IC chip. Optical synchronous type photoreflectors and photointerrupters, which less susceptible to disturbance background light, can be easily configured by just connecting an external LED to this photo IC. Our unique circuit design achieves an allowable background light level of 10000 lx Typ..


Features
-Large allowable background light level: 10000 lx Typ.
-Minimum detection level: 0.7 uW/mm2 Typ.
-Digital output (Output appears “L” by light input.)
-Small SMD package
-Packing type: Stick (S10053)
          Reel (S10053-01DT)

Package Plastic
Package type clear
Allowable background light level 10000 lx
Type Small SMD package
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

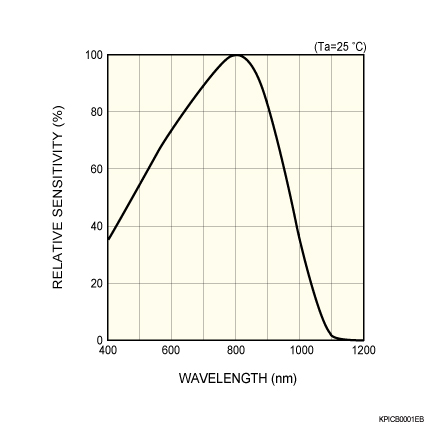

Spectral response

Dimensional outline (unit: mm)
