Light modulation photo IC

S6846

Fewer detection errors even under disturbance background light

This light modulation photo IC was developed for optical synchronous detection under disturbance background light. A photodiode, preamplifier, comparator, oscillator, LED driver and signal processing circuit, etc. are all integrated on a monolithic photo IC chip. Optical synchronous type photoreflectors and photointerrupters, which less susceptible to disturbance background light, can be easily configured by just connecting an external LED to this photo IC. Our unique circuit design achieves a minimum detection level of 0.2 uW/mm2 Typ..


Features
-Large allowable background light level: 3000 lx Typ.
-Minimum detection level: 0.2 uW/mm2 Typ.
-Digital output (Output appears “L” by light input.)

Package Plastic
Package type visible-cut
Allowable background light level 3000 lx
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

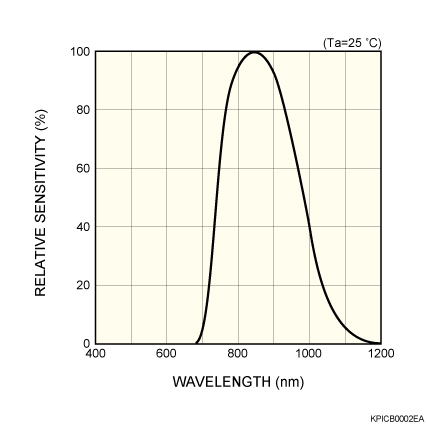

Spectral response

Dimensional outline (unit: mm)
