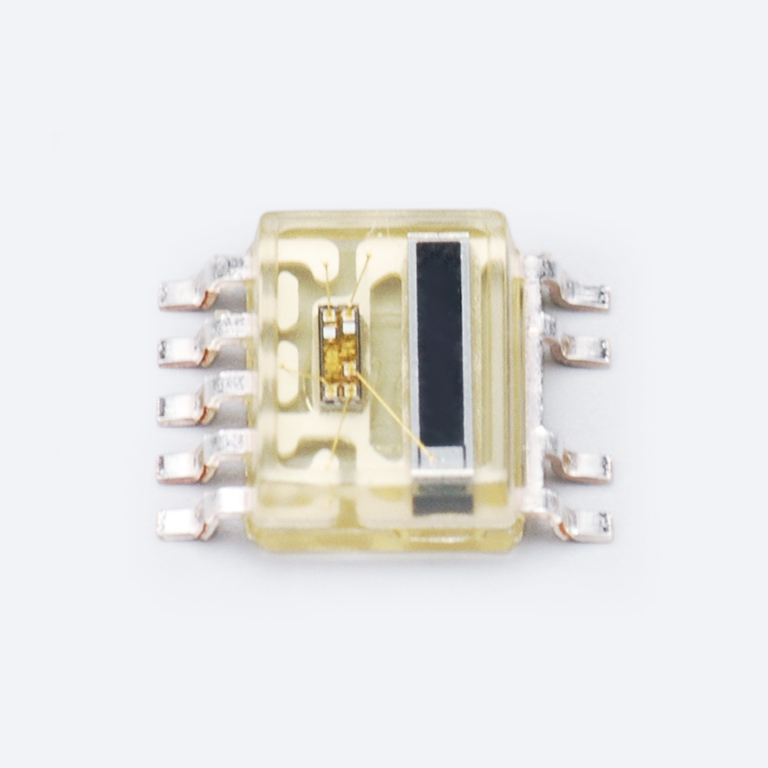

Photo IC for laser beam sync detection

S11257-01DT

Low voltage operation (3.3 V)

The S11257-01DT photo IC uses a high-speed PIN photodiode designed for laser beam synchronous detection. It operates at a low voltage (3.3 V) compatible with low-voltage peripheral components mounted on the same PC board.


Features
-Low voltage operation (3.3 V)
-High sensitivity (Current amplifier gain: 6 times)
-Digital output
-Small package
-Suitable for lead-free solder reflow
-Photosensitive area: 2.84 × 0.25 mm

Package Plastic
Package type Surface mount type
Number of elements 1
Operating Supply voltage 3.3 V
Type Low-voltage operation (3.3 V)
Measurement condition Ta=25 ℃, unless otherwise noted

Dimensional outline (unit: mm)
