Photo IC

S4810

Operation at low voltage from 2.2 V

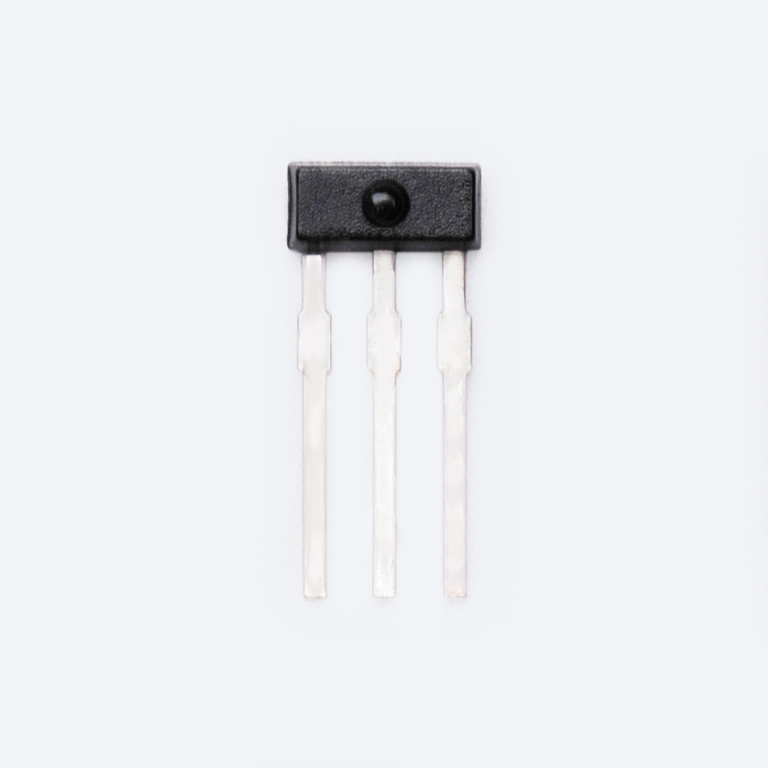

The S4810 is a digital output photo IC consisting of a photodiode, schmitt trigger circuit and output transistor, all integrated on a single chip and molded into a visible-cut, subminiature plastic package.


Features
-Low-voltage operation: 2.2 to 7 V
-Subminiature plastic package with lens
-Low current consumption
-Open collector output
-"H" level output at light input

Dimensional outlines

Specifications

Package Plastic
Package type with lens, visible-cut
Type Low-voltage operation, open collector output, "H" level output at light input
Operating temperature -25 to +85 deg.C
Storage temperature -40 to +100 deg.C
Current comsumption 1.3 mA
Measurement condition Typ. Ta=25 ℃, unless otherwise noted
