Si PIN photodiode array

S5981

Multi-element photodiode for surface mounting


Features
-Large active area: 10 × 10 mm
-Chip carrier package suitable for surface mounting
-Thin package: 1.26 mmt
-Photo sensitivity: 0.72 A/W (λ=960 nm)
-Packing
 Tray: S5981
 Reel: S5981-10

Number of elements 4-segment
Package Ceramic
Package category Surface mount type
Cooling Non-cooled
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.72 A/W
Dark current (max.) 4000 pA
Cutoff frequency (typ.) 20 MHz
Terminal capacitance (typ.) 35 pF
Measurement condition Typ. Ta=25 ℃, per one element (except for photosensitive area), unless otherwise noted,
Photosensitivity: λ=960 nm

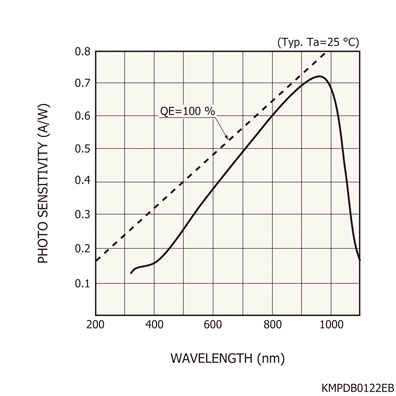

Spectral response

Dimensional outline (unit: mm)
