Si photodiode array

S8558

Surface mountable 16-element photodiode array

The S8558 is a 16-element Si PIN photodiode array in a ceramic chip carrier package suitable for surface mount using solder reflow techniques. The S8558 can be used in a wide range of applications including spectrophotometer and distance measurement.


Features
-Active area: 0.7 × 2.0 mm (× 16 elements)
-Ceramic chip carrier package for surface mount
-Suitable for solder reflow
-High sensitivity

Element size (per 1 element) 0.7 × 2.0 mm
Number of elements 16
Package Ceramic
Package category Surface mount
Scintillator type None
Cooling Non-cooled
Reverse voltage (max.) 30 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.72 A/W
Dark current (max.) 1000 pA
Terminal capacitance (typ.) 5 pF
Measurement condition Typ. Ta=25 ℃, unless otherwise noted
per one element, Photosensitivity: λ=λp, Dark current: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz

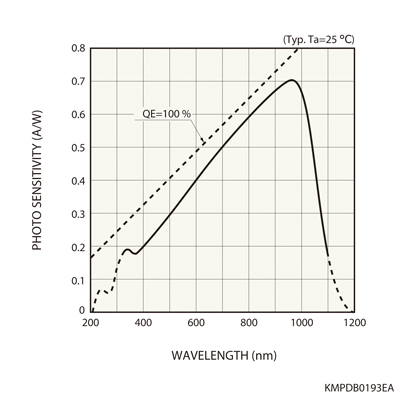

Spectral response

Dimensional outline (unit: mm)
