Si photodiode

S1226-18BQ

For UV to visible, precision photometry; suppressed near IR sensitivity


Features
- High UV sensitivity: QE=75 % (λ=200 nm)
- Suppressed near IR sensitivity
- Low dark current
- High reliability

Photosensitive area 1.1 × 1.1 mm
Number of elements 1
Package Metal
Package category TO-18
Cooling Non-cooled
Reverse voltage (max.) 5 V
Spectral response range 190 to 1000 nm
Peak sensitivity wavelength (typ.) 720 nm
Photosensitivity (typ.) 0.36 A/W
Dark current (max.) 2 pA
Rise time (typ.) 0.15 μs
Terminal capacitance (typ.) 35 pF
Noise equivalent power (typ.) 1.6×10-15 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=720 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted

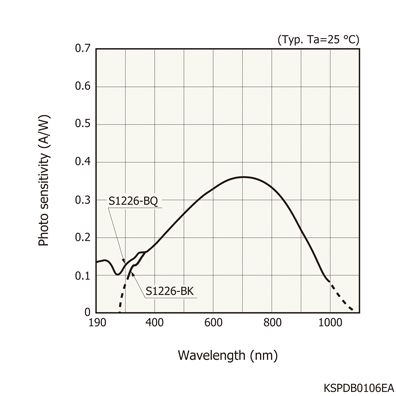

Spectral response

Dimensional outline (unit: mm)
