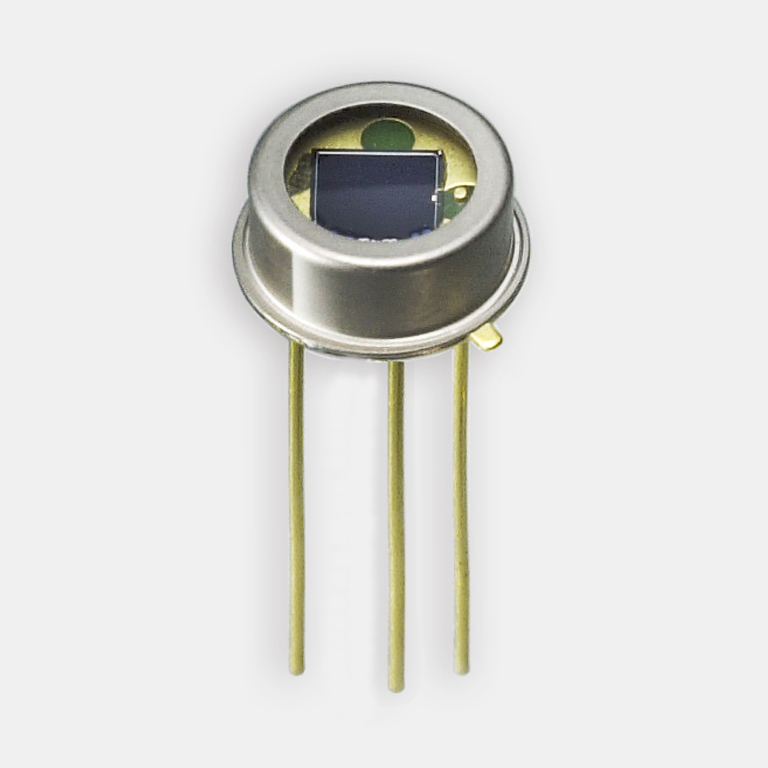

Si photodiode

S12698-07

High UV tolerance, photodiodes for UV monitor



The S12698 series are Si photodiodes that have achieved high reliability for monitoring ultraviolet light by employing a structure that does not use resin. They exhibit low sensitivity deterioration under UV light irradiation and are suitable for applications such as monitoring intense UV light sources. The S12698-07 is a 3-pin type with case connection pins electrically independent from anodes.


Features
- With UV glass window (hermetically sealed)
- High sensitivity in UV region
- High reliability for monitoring UV light irradiation
- Resin material not used



Photosensitive area 1.1 × 1.1 mm
Number of elements 1
Package Metal
Package category TO-18
Cooling Non-cooled
Reverse voltage (max.) 5 V
Spectral response range 190 to 1000 nm
Peak sensitivity wavelength (typ.) 800 nm
Photosensitivity (typ.) 0.38 A/W
Dark current (max.) 10 pA
Rise time (typ.) 0.1 μs
Terminal capacitance (typ.) 25 pF
Noise equivalent power (typ.) 1×10-14 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=800 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted

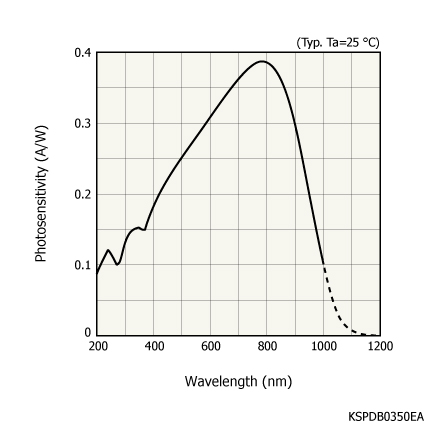

Spectral response

Dimensional outline (unit: mm)
