Si photodiode


For UV to IR, precision photometry

-High UV sensitivity: QE 75% (λ=200 nm)
-Low capacitance

Photosensitive area 2.4 × 2.4 mm
Number of elements 1
Package Ceramic
Cooling Non-cooled
Reverse voltage (max.) 5 V
Spectral response range 190 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.5 A/W
Dark current (max.) 30 pA
Rise time (typ.) 0.2 μs
Terminal capacitance (typ.) 65 pF
Noise equivalent power (typ.) 8.1×10-15 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted

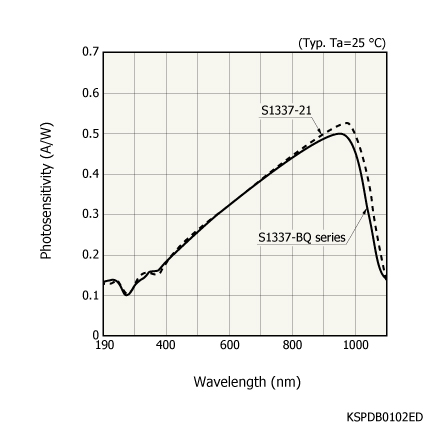

Spectral response

Dimensional outline (unit: mm)
