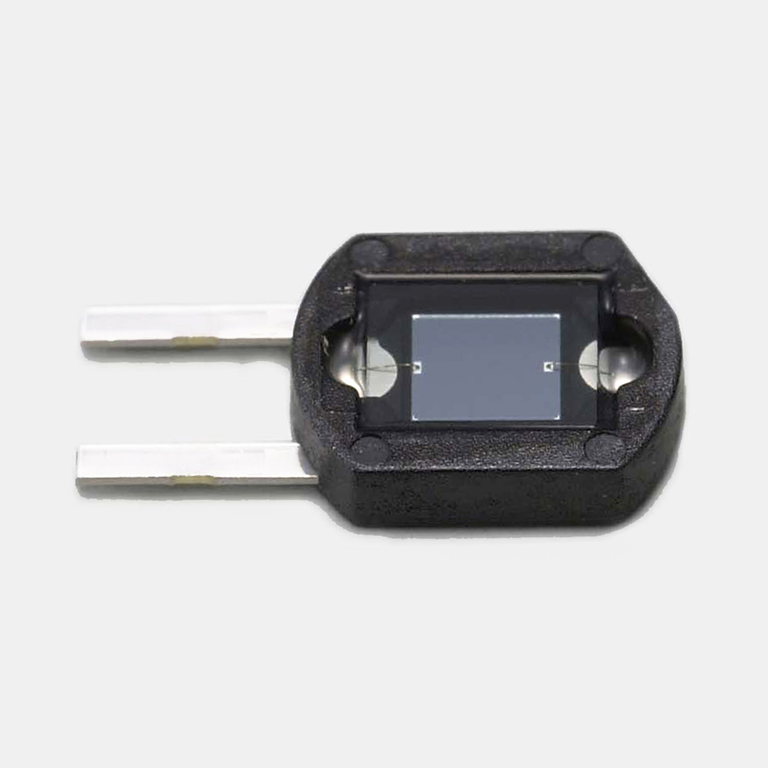

Si photodiode

S1787-04

Plastic package photodiode with low dark current

S1787-04 is a family of plastic package photodiodes that offer low dark current. Plastic package used is light-impervious, so no stray light can reach the photosensitive area from the side or backside. This allows reliable optical measurements in the visible to near infrared range, over a wide dynamic range from low light levels to high light levels.


Features
-For visible range

Photosensitive area 2.8 × 2.4 mm
Number of elements 1
Package Plastic
Package category With filter
Cooling Non-cooled
Reverse voltage (max.) 10 V
Spectral response range 320 to 730 nm
Peak sensitivity wavelength (typ.) 560 nm
Photosensitivity (typ.) 0.3 A/W
Dark current (max.) 10 pA
Rise time (typ.) 2.5 μs
Terminal capacitance (typ.) 700 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=1V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted

Spectral response

Dimensional outline (unit: mm)
