Si PIN photodiode

S2506-04

Plastic SIP (single in-line package)

S2506-04 is a Si PIN photodiode with large active areas, molded into a visible-cut plastic SIP for detecting near infrared range only.


Features
- Visible-cut
- Plastic package: 7 × 7.8 mm
- Photosensitive area size: 2.77 × 2.77 mm

Photosensitive area 2.77 × 2.77 mm
Number of elements 1
Package Plastic
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 760 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.56 A/W
Dark current (max.) 10000 pA
Cutoff frequency (typ.) 25 MHz
Terminal capacitance (typ.) 15 pF
Noise equivalent power (typ.) 1×10-14 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=12 V, Cutoff frequency: VR=12 V, Terminal capacitance: VR=12 V, f=1 MHz, Noise equivalent power: VR=12 V, unless otherwise noted

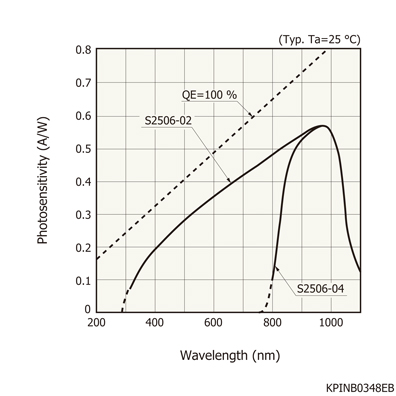

Spectral response
