Si PIN photodiode

S2744-09

Large active area Si PIN photodiodes


Features
- Sensitivity matching with BGO and CsI(TI) scintillators
- Low capacitance
- High-speed response
- High stability
- Good energy resolution

Notice

The chip of this product is not sealed and is exposed. Parts such as electrodes on the chip are not protected by an enclosure or window and so require especially strict care during handling compared to ordinary products.
Before using this product, always read “Precautions / Unsealed products” described below.

Specifications

Photosensitive area 20 × 10 mm
Number of elements 1
Package Ceramic
Cooling Non-cooled
Reverse voltage (max.) 100 V
Spectral response range 340 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.66 A/W
Dark current (max.) 10000 pA
Cutoff frequency (typ.) 25 MHz
Terminal capacitance (typ.) 85 pF
Noise equivalent power (typ.) 4.7×10-14 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=70 V, Cutoff frequency: VR=70 V, Terminal capacitance: VR=70 V, f=1 MHz, Noise equivalent power: VR=70 V, unless otherwise noted

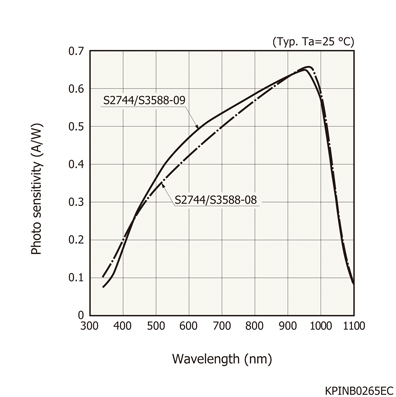

Spectral response

Dimensional outline (unit: mm)
