Si photodiode

S2833-04

Si photodiode molded into clear plastic package


Features
-Visible to near IR range

Photosensitive area 2.4 × 2.8 mm
Number of elements 1
Package Plastic
Cooling Non-cooled
Reverse voltage (max.) 10 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.58 A/W
Dark current (max.) 10 pA
Rise time (typ.) 0.5 μs
Terminal capacitance (typ.) 200 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity:λ=λp, Dark current: VR=1 V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted

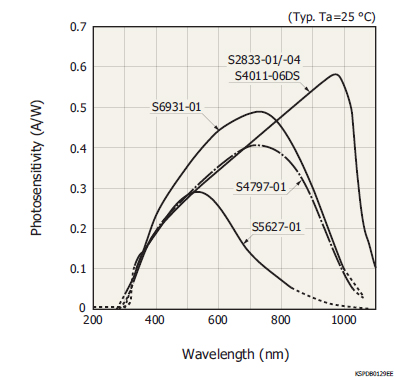

Spectral response

Dimensional outline (unit: mm)
