Si PIN photodiode

S4707-01

Si PIN photodiode for general photometry


Features
-Clear plastic package: 4.5 × 5.5 mm
-4-pin DIP type
-Photosensitive area: 2.4 × 2.8 mm

Photosensitive area 2.4 × 2.8 mm
Number of elements 1
Package Plastic
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.6 A/W
Dark current (max.) 5000 pA
Cutoff frequency (typ.) 20 MHz
Terminal capacitance (typ.) 14 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, unless otherwise noted

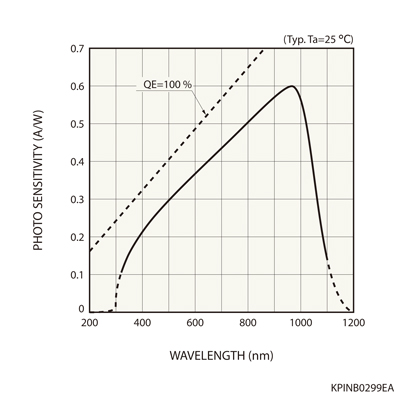

Spectral response

Dimensional outline (unit: mm)
