Si PIN photodiode

S7478

High reliability, Large photosensitive area (5 × 5 mm), Reel packing

The S7478 series are PIN photodiodes having a large photosensitive area and surface mount flat package with leads. There are two same products in different packing types; the S7478 is reel packing and the S7478-02DS is stick packing.


Features
-Small plastic package: 9 × 9.6 × 1.5t mm
-Large photosensitive area: 5 × 5 mm
-Operating temperature range: -25 to +85 °C
Storage temperature range: -40 to +100 °C
-High sensitivity: 0.72 A/W (λ=960 nm)



Photosensitive area 5 × 5 mm
Number of elements 1
Package Plastic
Package category Surface mount type
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.72 A/W
Dark current (max.) 5000 pA
Cutoff frequency (typ.) 20 MHz
Terminal capacitance (typ.) 40 pF
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, unless otherwise noted

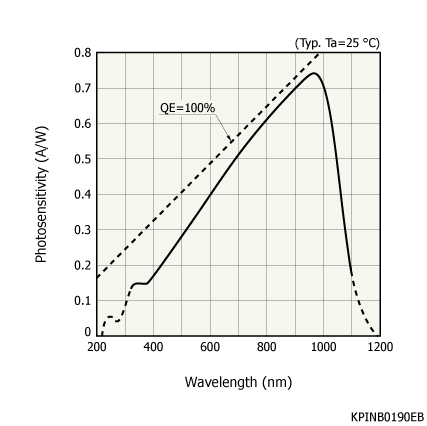

Spectral response

Dimensional outline (unit: mm)
