Si photodiode

S9219

Spectral response like human eye


Features
- Accurate visible-compensated filter is used
- High reliable metal package
- Metal package with BNC connector (photosensitive area: φ11.3 mm)

Photosensitive area φ11.3 mm
Number of elements 1
Package Metal
Package category With filter (CIE)
Cooling Non-cooled
Reverse voltage (max.) 5 V
Spectral response range 380 to 780 nm
Peak sensitivity wavelength (typ.) 550 nm
Photosensitivity (typ.) 0.24 A/W
Dark current (max.) 500 pA
Rise time (typ.) 2.5 μs
Terminal capacitance (typ.) 1100 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=10 mV, Rise time: VR=0 V, Terminal capacitance: VR=0 V, f=1 kHz, unless otherwise noted

Spectral response

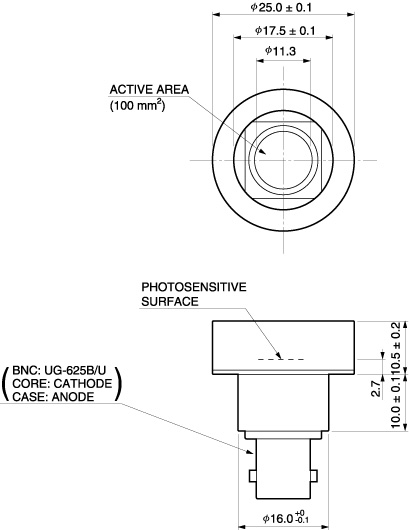

Dimensional outline (unit: mm)
