Si photodiode with preamp

S9295-01

Large area photodiode integrated with op amp and TE-cooler

The S9295-01 is a thermoelectrically cooled Si photodiode with preamp developed for low-light-level detection. A large area photodiode, op amp, TE-cooler and feedback resistor (10 GΩ) are integrated into a single package. A thermistor is also included in the same package for temperature control so that the photodiode and I-V conversion circuit can be cooled for stable operation. The S9295-01 also features low noise and low NEP, and is especially suitable for NOx detection. The photosensitive area of the photodiode is internally connected to the GND terminal making it highly resistant to EMC noise.


Features
- Large photosensitive area: 10 × 10 mm
- UV to NIR Si photodiode optimized for precision photometry
- Compact hermetic package with sapphire window
- High precision FET input operational amplifier
- High gain: Rf=10 GΩ
- Low noise and NEP
- High cooling efficiency: ΔT=30 ℃
- High stability with thermistor
- Highly resistant to EMC noise

Photosensitive area 10 × 10 mm
Number of elements 1
Package Metal
Cooling TE-cooled
Spectral response range 190 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Noise equivalent power (typ.) 5×10-15 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, Noise equivalent power: λ=λp, f=10 Hz, unless otherwise noted

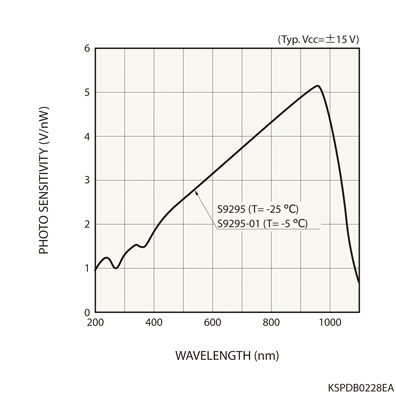

Spectral response

Dimensional outline (unit: mm)
