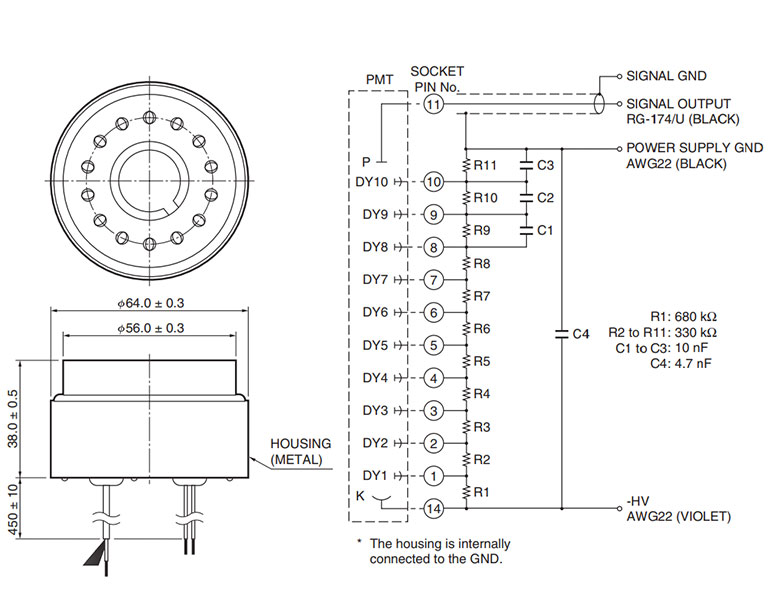

D-type socket assembly
|Applicable PMT||51 mm Head-on type|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||1750 V|
|[Max. Rating] Supply Voltage||1750 V|
|[Max. Rating] Voltage Divider Current||0.44 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||3.98 MΩ|
|Max. Linear Output in DC Mode||22 (at 1750 V) μA|
