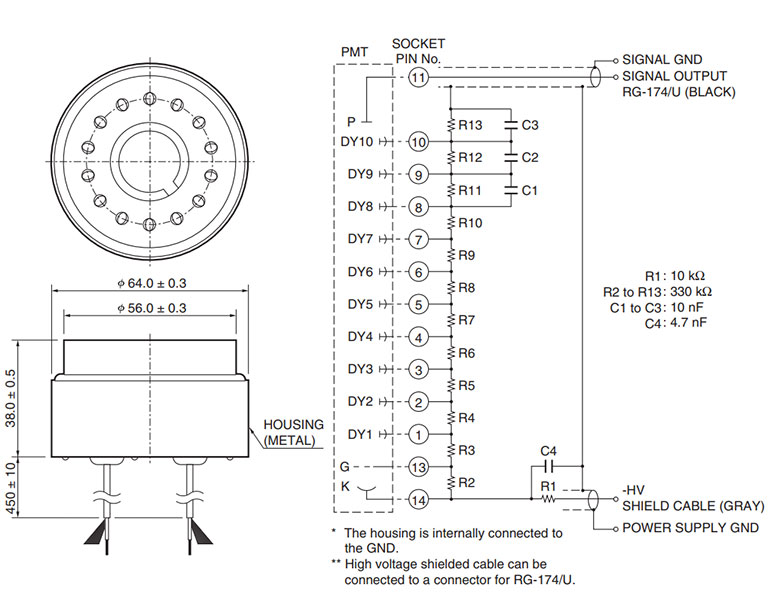

D-type socket assembly
|Applicable PMT||51 mm, 76 mm, 127 mm Head-on type|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||2200 V|
|[Max. Rating] Supply Voltage||2000 V|
|[Max. Rating] Voltage Divider Current||0.5 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Total Voltage Divider Resistance||3.97 MΩ|
|Max. Linear Output in DC Mode||25 (at 2000 V) μA|
