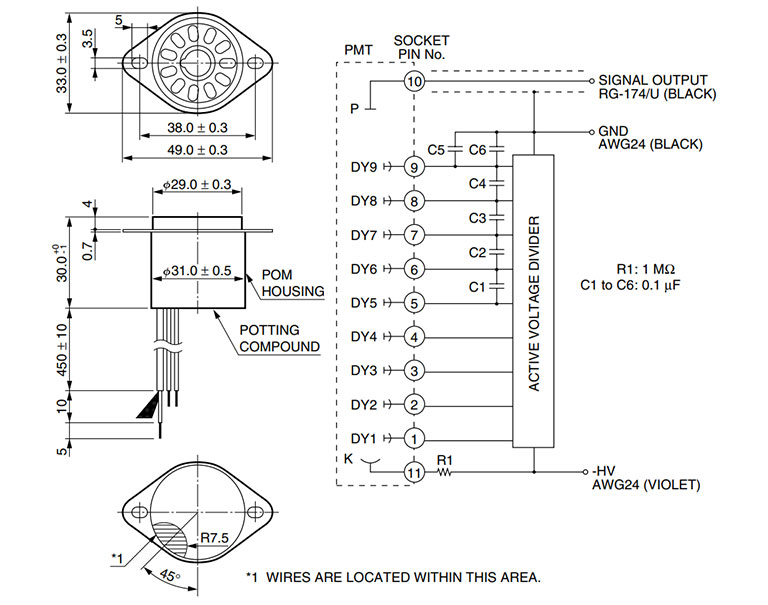

D-type socket assembly
|Applicable PMT||28 mm Side-on type|
|Supply Voltage Polarity||-|
|[Max. Rating] Insulation Voltage (Case-Pins)||1500 V|
|[Max. Rating] Voltage Divider Current||0.13 mA|
|Leakage Current in Signal Max.||1.0 x 10-10 A|
|Max. Linear Output in DC Mode||100 μA|
|Signal Output||DC / Pulse|
