D-type socket assembly

E2183-502

For 38mm dia. Head-on PMT

Applicable PMT 38 mm Head-on type
Supply Voltage Polarity +
[Max. Rating] Insulation Voltage (Case-Pins) 2000 V
[Max. Rating] Supply Voltage 1750 V
[Max. Rating] Voltage Divider Current 0.45 mA
Total Voltage Divider Resistance 3.96 MΩ
Notes with connector For scintillation counting

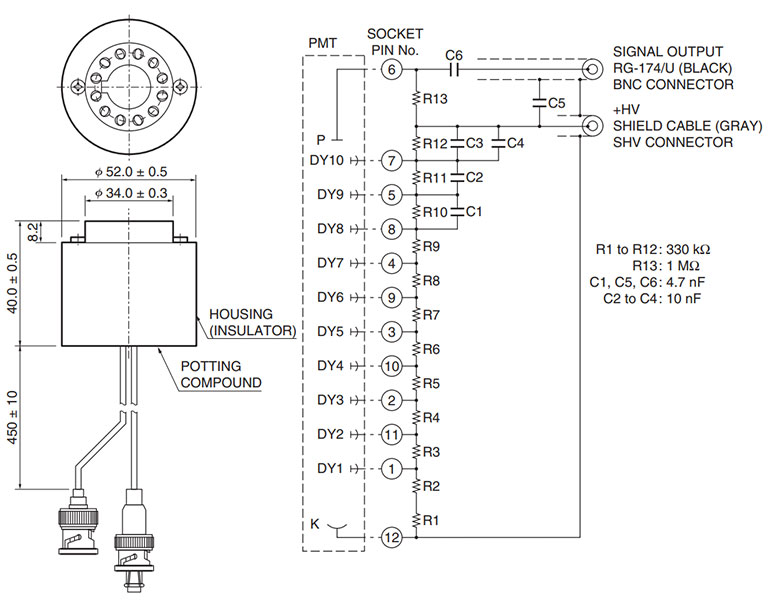

Dimensional outline (Unit: mm)
