D-type socket assembly

E2624

For 28mm dia. Head-on PMT

Applicable PMT 28 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 2500 V
[Max. Rating] Supply Voltage 2500 V
[Max. Rating] Voltage Divider Current 0.53 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 4.8 MΩ
Max. Linear Output in DC Mode 26 μA (at 2500 V)
Notes For R6427

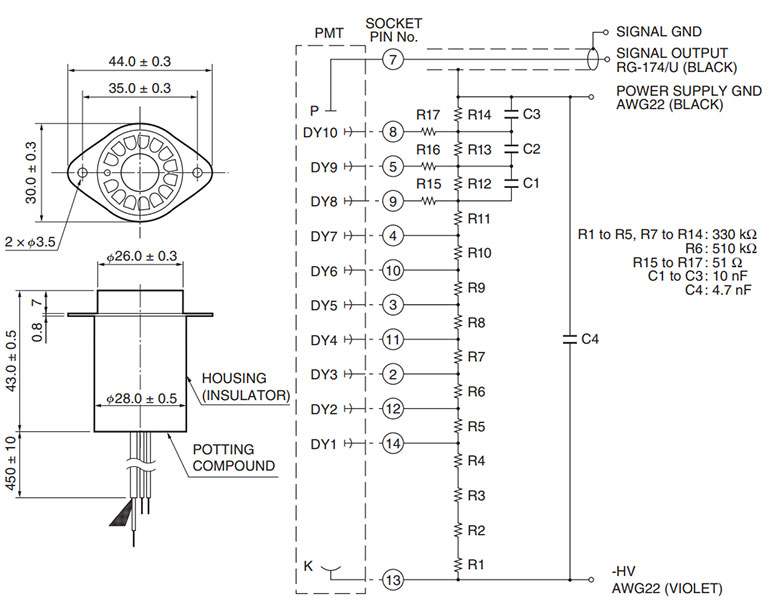

Dimensional outline (Unit: mm)
