D-type socket assembly

E2979-500

For 51mm dia. Head-on PMT

Applicable PMT 51 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 3000 V
[Max. Rating] Supply Voltage 3000 V
[Max. Rating] Voltage Divider Current 0.7 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 4.31 MΩ
Max. Linear Output in DC Mode 34 μA (at 3000 V)
Notes For R1828-01, with rear panel connector
with magnetic shield

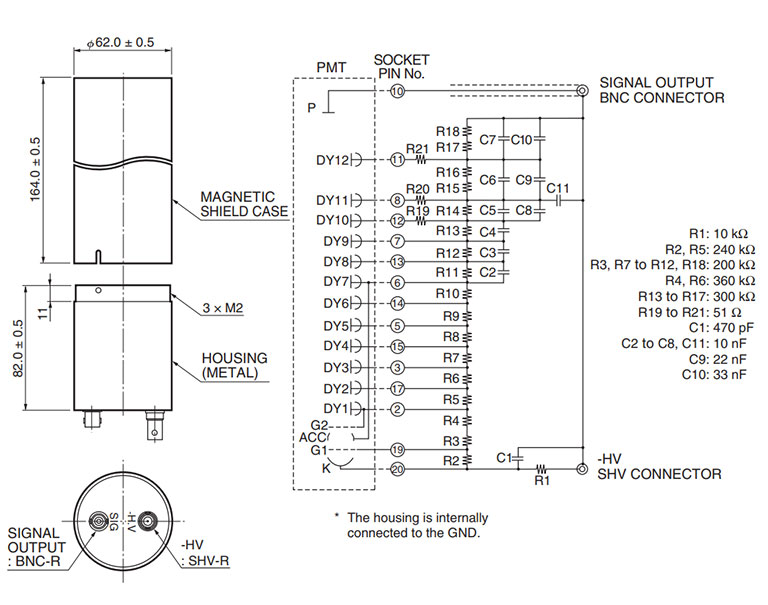

Dimensional outline (Unit: mm)
