D-type socket assembly

E5859

For 51mm, 76mm dia. Head-on PMT

Applicable PMT 51 mm, 76 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 2700 V
[Max. Rating] Supply Voltage 2700 V
[Max. Rating] Voltage Divider Current 0.67 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 4.06 MΩ
Max. Linear Output in DC Mode 33 μA (at 2700 V)
Notes with rear panel connector

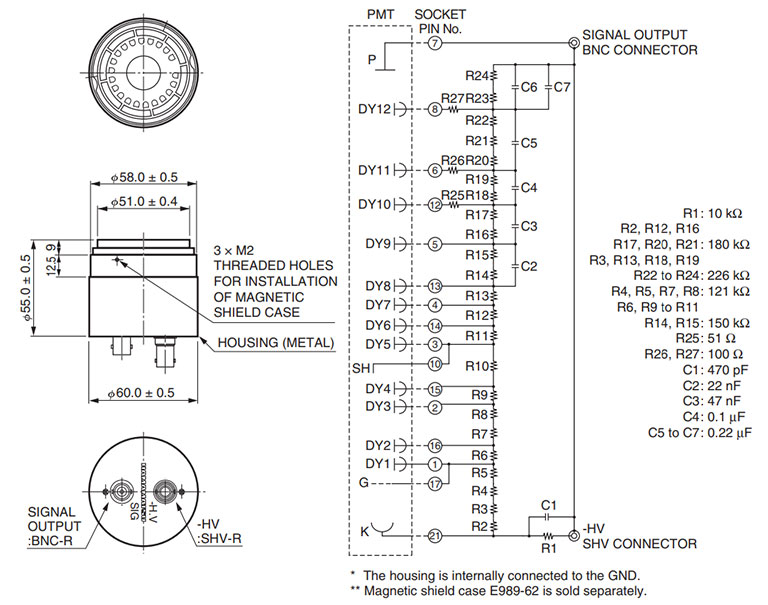

Dimensional outline (Unit: mm)
