D-type socket assembly

E7693

For 127mm dia. Head-on PMT

Applicable PMT 127 mm Head-on type
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 3000 V
[Max. Rating] Supply Voltage 3000 V
[Max. Rating] Voltage Divider Current 1.02 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Total Voltage Divider Resistance 2.94 MΩ
Max. Linear Output in DC Mode 51 μA (at 3000 V)
Notes For R1250, for R1584, with rear panel connector

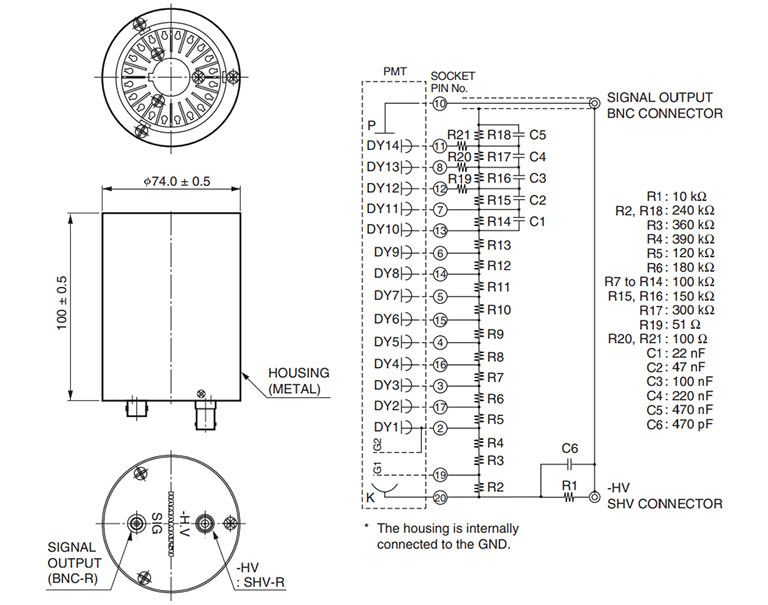

Dimensional outline (Unit: mm)
