DA-type socket assembly
C16138-02
The C16138 series is DA type socket assemblies designed for metal package photomultiplier tube R9880U. A voltage-divider circuit and an amplifier are incorporated in the same package.
The photomultiplier tube's low-level, high-impedance current can be converted into a low-impedance voltage output. The C16138 series is compact and you can choose the product that best suits your application from the frequency bands of 200 kHz(C16138-01), 2 MHz(C16138-02) and 20 MHz(C16138-03).
Specifications
| Applicable PMT | R9880U series |
|---|---|
| [Max. Rating] Supply Voltage for Amplifier | +/-5.5 V |
| [Max. Rating] Supply Voltage for Divider | -1100 V |
| [Max. Rating] Operating Ambient Temperature | 0 ℃ to +40 ℃ |
| [Max. Rating] Storage Temperature | -15 ℃ to +60 ℃ |
| Frequency Bandwidth (-3 dB) | DC to 2 MHz |
| Current to Voltage Conversion Factor | 0.6 V/μA (Load resistance 10 kΩ) / 0.3 V/μA (Load resistance 50 Ω) |
| Max. Output Signal Voltage | +3.5 V (Load resistance 10 kΩ) / +1.6 V (Load resistance 50 Ω) |
| Offset Voltage Max. | +/-2 mV (Load resistance 10 kΩ) / +/-1 mV (Load resistance 50 Ω) |
| Output Noise Voltage (rms) Typ. | 1 mV |
| Supply Voltage for Amplifier | +/-5 V |
| Recommended Supply Voltage for Divider | ‐500 V to -1000 V |
| Divider Circuit Current Typ. | 289 μA (at -1000 V) |
| Weight Typ. | 4.4 g |

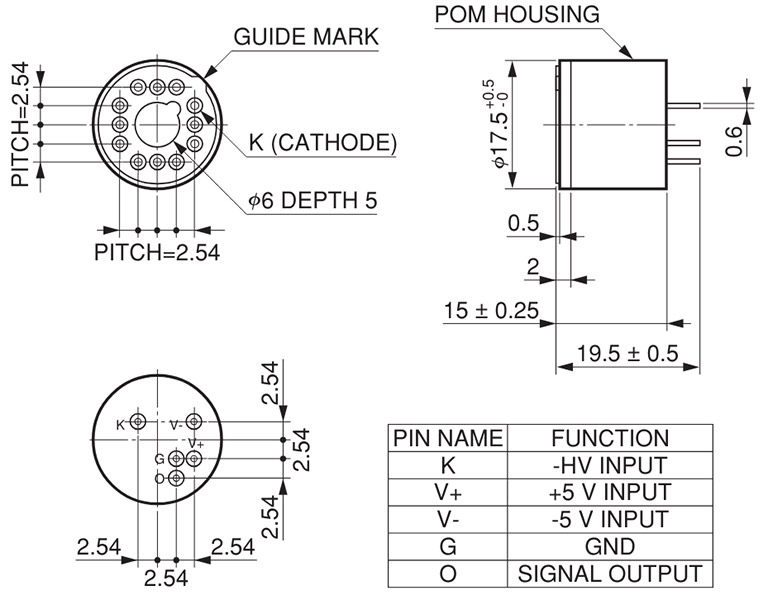

Dimensional outline (Unit mm)
