DP-type socket assembly

C10344-03

The C10344-03 is a compact and lightweight socket assembly incorporating a socket, voltage divider circuit and high voltage power supply designed for use with 28 mm(1-1/8") diameter side-on type photomultiplier tube. It features low power consumption and superior output linearity comparing with conventional socket assemblies.

Type High Voltage Power Supply Socket Assembly (DP type)
Applicable PMT 28 mm dia. Head-on type
Input Voltage +11.5 V to +15.5 V
Max. Input Voltage 18 V
Max. Input Current 8 mA
[PMT] Linear DC Output Current Min. 100 μA
[PMT] Anode Ripple Noise Typ. 1 mVp-p
[HV Power Supply] Output Voltage Range -200 V to -1500 V
[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ. +/-0.01 %
[HV Power Supply] Output Voltage Control 0 V to +1.5 V or external 10 kΩ potentiometer
[HV Power Supply] Settling Time 10 s
[HV Power Supply] Temperature Coefficient Typ. +/-0.005 %/℃
Operating Ambient Temperature 0 ℃ to +50 ℃
Storage Temperature -15 ℃ to +60 ℃
Weight Typ. 57 g

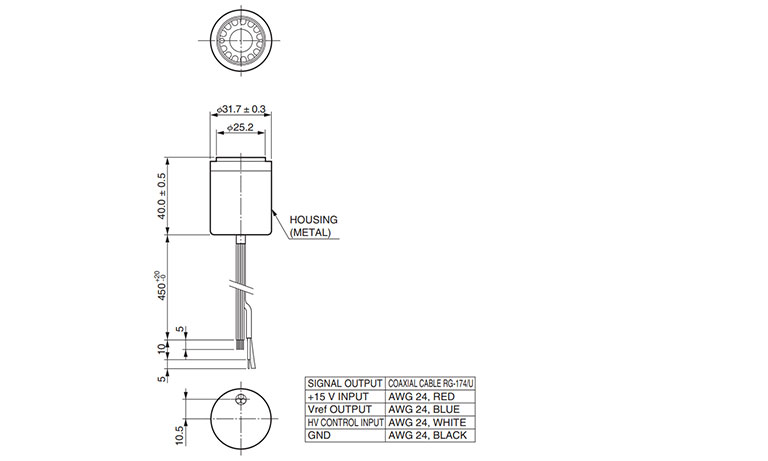

Dimensional outline (Unit: mm)
