DP-type socket assembly

C13003-01

The C13003-01 is a high voltage power supply socket assembly for 25 mm (1inch) diameter head-on photomultiplier tubes, incorporating a regulated high voltage power supply and an active voltage divider. It enables simple yet stable photomultiplier tube operations with extended DC output linearity by only supplying +15 V and 0 V to +5 V for high voltage adjustments.

Type High Voltage Power Supply Socket Assembly (DP type)
Applicable PMT 25 mm dia. Head-on type
Input Voltage +15 V +/-1 V
Max. Input Voltage 18 V
Max. Input Current 60 mA
[PMT] Linear DC Output Current Min. 100 μA
[PMT] Anode Ripple Noise Typ. 0.5 mVp-p
[HV Power Supply] Output Voltage Range -200 V to -1250 V
[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ. +/-0.01 %
[HV Power Supply] Output Voltage Control 0 V to +5 V or external 50 kΩ potentiometer
[HV Power Supply] Output Voltage Programming Response Typ. 80 ms
[HV Power Supply] Temperature Coefficient Typ. +/-0.01 %/℃
Operating Ambient Temperature 0 ℃ to +40 ℃
Storage Temperature -15 ℃ to +60 ℃
Weight Typ. 40 g

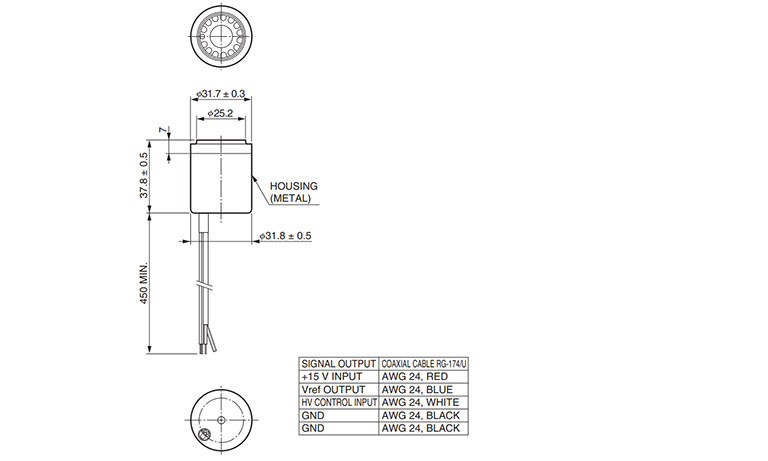

Dimensional outline (Unit: mm)
