DAP-type socket assembly

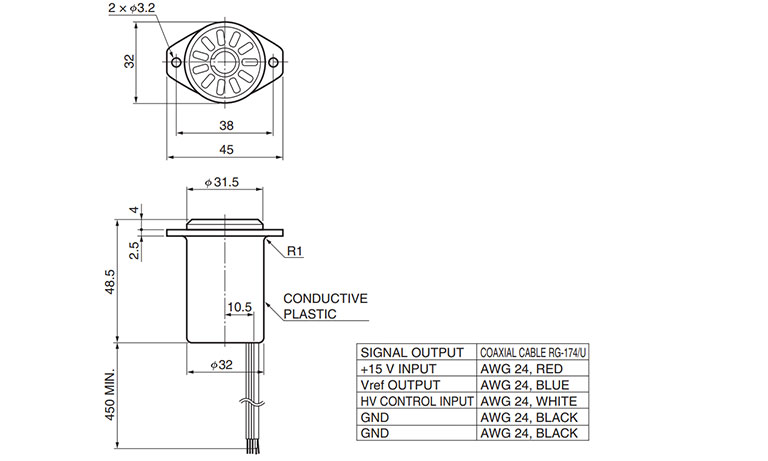

The C13654-01 is a high voltage power socket assembly for 28 mm (1-1/8 inch) diameter side-on photomultiplier tubes (PMT), incorporating a regulated high voltage power supply, an active voltage divider, and a transimpedance amplifier. It enables simple yet stable PMT operations with extended DC output linearity by only supplying +15 V and connecting to a potentiometer or a 0 to +5 V for high voltage adjustment.
|Type||High Voltage Power Supply Socket Assembly with Transimpedance Amplifier (DAP type)|
|Applicable PMT||28 mm dia. Side-on type|
|Input Voltage||+15±1 V|
|Max. Input Voltage||18 V|
|Max. Input Current||55 (without PMT) mA|
|[PMT] Linear DC Output Current Min.||43 (Input voltage=+15V, control voltage=+4V) Within:±2% linearity μA|
|[HV Power Supply] Output Voltage Range||0 to -1250 V|
|[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ.||±0.01 %|
|[HV Power Supply] Output Voltage Control||Control voltage (0V to +5V) or potentiometer (50kΩ)|
|[HV Power Supply] Controll Voltage Input Impedance||100 kΩ|
|[HV Power Supply] Output Voltage Programming Response Typ.||80 ms|
|[HV Power Supply] Temperature Coefficient Typ.||±0.01 %/℃|
|[Amp] Frequency Bandwidth (-3 db)||DC to 10 kHz|
|[Amp] Current to Voltage Conversion Factor||0.3 (Load resistance=10 kΩ) V/uA|
|[Amp] Max. Output Signal Voltage||+13 (Load resistance=10 kΩ) V|
|[Amp] Output Signal Offset Voltage Typ.||±0.3 mV|
|[Amp] Output Signal Ripple/Noise||1 mVp-p (Max.)|
|Operating Ambient Temperature||0 to +50 ℃|
|Storage Temperature||-15 to +60 ℃|
|Weight Typ.||47 ｇ|
