DP-type socket assembly

C8991-05

The C8991-05 is a compact and lightweight socket assembly incorporating a socket, voltage divider circuit and high voltage power supply designed for use with 28 mm(1-1/8") diameter side-on type photomultiplier tube. It features low power consumption and superior output linearity comparing with conventional socket assemblies.

C8991-05
Input voltage: +5 V ± 0.5 V, Output voltage range: -200 V to -1200 V
C8991
Input voltage: +11.5 V to +15.5 V, Output voltage range: -200 V to -1200 V
C8991-01
Input voltage: +13.5 to +15.5 V, Output voltage range: -200 V to -1500 V

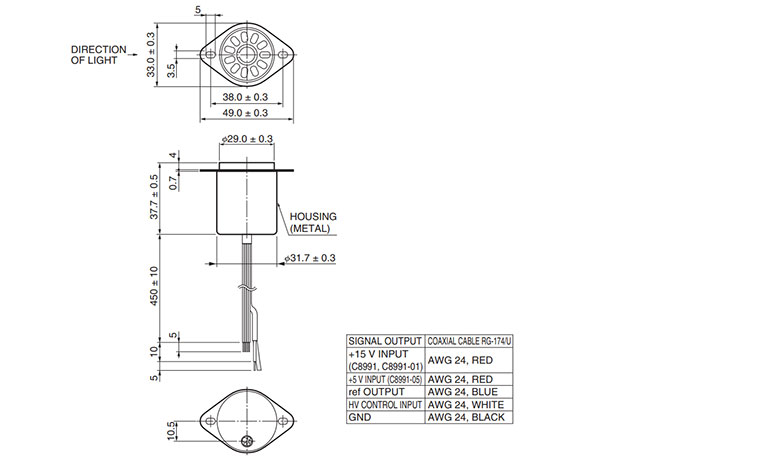

Specifications

Type High Voltage Power Supply Socket Assembly (DP type)
Applicable PMT 28 mm dia. Side-on type
Input Voltage +5 ± 0.5 V
Max. Input Voltage 6 V
Max. Input Current 7 mA
[PMT] Linear DC Output Current Min. 100 μA
[PMT] Anode Ripple Noise Typ. 1 mVp-p
[HV Power Supply] Output Voltage Range 0 to -1200 V
[HV Power Supply] Recommended Output Voltage Range -200 to -1200 V
[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ. ±0.01 %
[HV Power Supply] Output Voltage Control 0 V to +1.2 V or external 10 kΩ potentiometer
[HV Power Supply] Settling Time 10 s
[HV Power Supply] Temperature Coefficient Typ. ±0.005 %/℃
Operating Ambient Temperature 0 to +50 ℃
Storage Temperature -15 to +60 ℃
Weight Typ. 45 g
