DP-type socket assembly

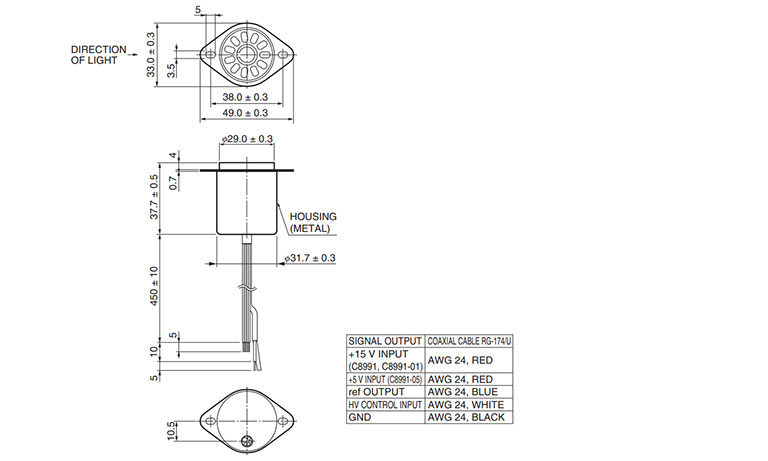

The C8991 is a compact and lightweight socket assembly incorporating a socket, voltage divider circuit and high voltage power supply designed for use with 28 mm(1-1/8") diameter side-on type photomultiplier tube. It features low power consumption and superior output linearity comparing with conventional socket assemblies.
Input voltage:+11.5 to +15.5 V, Output voltage range:0 to -1200 V
Input voltage:+13.5 to +15.5 V, Output voltage range:0 to -1500 V
Input voltage:+5±0.5 V, Output voltage range:0 to -1200 V
|Type||High Voltage Power Supply Socket Assembly (DP type)|
|Applicable PMT||28 mm dia. Side-on type|
|Input Voltage||+11.5 to +15.5 V|
|Max. Input Voltage||18 V|
|Max. Input Current||8 mA|
|[PMT] Linear DC Output Current Min.||100 μA|
|[PMT] Anode Ripple Noise Typ.||1 mVp-p|
|[HV Power Supply] Output Voltage Range||0 to -1200 V|
|[HV Power Supply] Recommended Output Voltage Range||-200 to -1200 V|
|[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ.||±0.01 %|
|[HV Power Supply] Output Voltage Control||0 V to +1.2 V or external 10 kΩ potentiometer|
|[HV Power Supply] Settling Time||10 s|
|[HV Power Supply] Temperature Coefficient Typ.||±0.005 %/℃|
|Operating Ambient Temperature||0 to +50 ℃|
|Storage Temperature||-15 to +60 ℃|
|Weight Typ.||57 ｇ|
