Thermoelectric cooler

C14760

The C14760 series is a thermoelectric cooler designed for 28mm diameter side-on photomultiplier tubes (PMT). The C14760 improves S/N (signal to noise ratio) of PMT measurement because of reduction of thermal electrons, which are emitted from PMT photocathode, and minimization of external noise by a built-in electrostatic and magnetic shield.

Characteristics

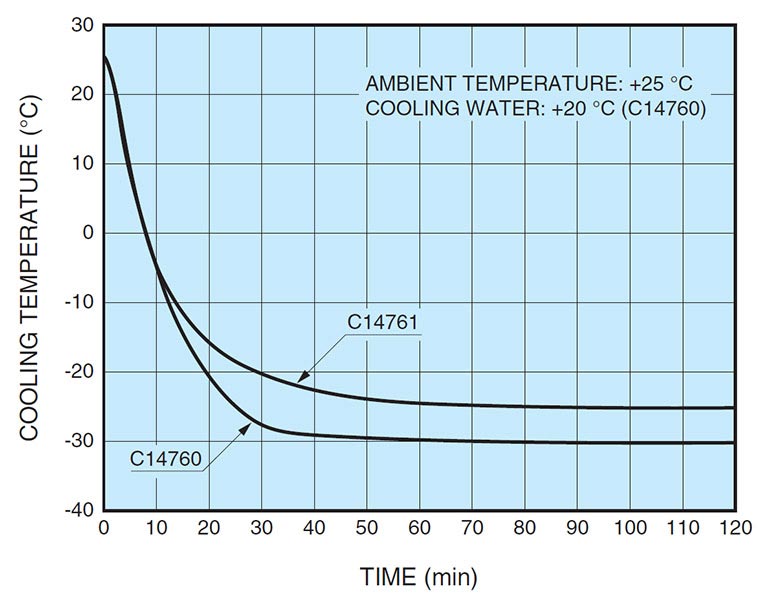

Cooling characteristics

Cooling characteristics

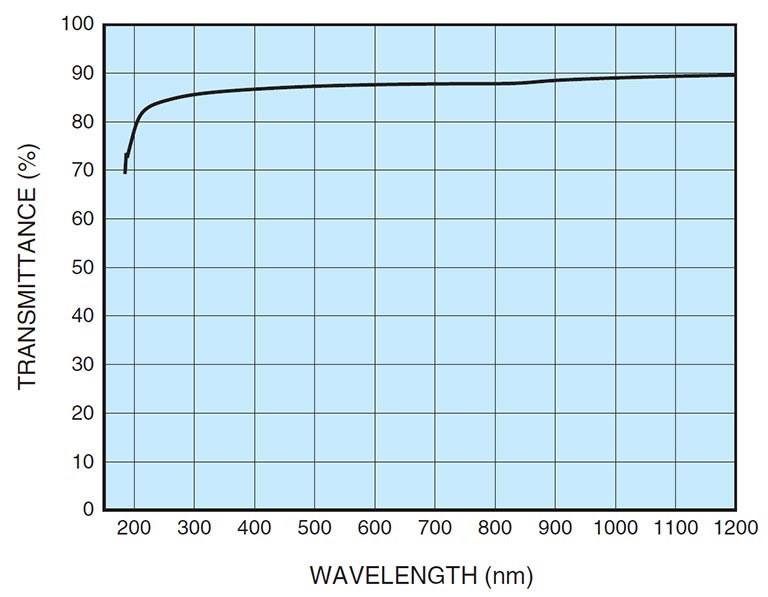

Spectral transmission characteristics of optical window

Spectral transmission characteristics of optical window

Specifications

Type For 28 mm Side-on PMT
Feature Built-in interface for controlling external equipment (D-sub)
Cooling Method Thermoelectric cooling using Peltier Elements
Heat Exchange Method Water
Cooling Temperature Approx. -30 °C (with cooling water +20 °C)
Time to Stable Cooling Temperature Approx. 70 min.
Optical Window Material Silica glass (185 nm to 2200 nm)
Light Input Aperture Dimension 8 x 24 mm
Applicable PMT (Sold Separately) 28 mm (1-1/8") Dia. Side-on type
Applicable Socket Assembly (Sold Separately) C9145 (DP-type), E9146 (D-type)
Operating Ambient Temperature +5 °C to +40 °C
Operating Ambient Humidity Below 75 %
Storage Temperature -20 °C to +50 °C
Storage Humidity Below 85 %
Cooler Weight Approx. 1 kg
