Photon detection unit

C13796

The photon detection unit C13796 is a single photon counting unit that is designed for counting low light emission without special set-up. All users need to prepare the sample and a personal computer (PC) only. The USB interface built-in the C13796 allows simple plug & play set-up.
Six optional modular units (sold separately) are available. The users can select the best one meeting with the purpose/application. When combined with the optional modular units, the C13796 is ideal for various measurements.

Applications

  • Bioluminescence, chemiluminescence measurement
  • Food oxidation, antioxidant activity luminescence measurement
  • Activated cell luminescence measurement
  • UV-excited (UV LED) delayed fluorescence measurement
  • ATP monitors with reagent
  • Other low-light-level measurements

Features

  • Photon counting with high SN ratio
    • Low noise: 50 s-1 (Typ. at +20 ℃)
  • USB interface compatible
  • Interlock function (C13796 + A9861)
    • Automatically closes optical shutter to prevent excessive light from entering PMT if sample compartment is accidentally opened during measurement.
  • Control sample software included
  • Optical fiber (FC type) compatible (C13796 + A9859)
  • UV excitation (C13796 + A9860 + A9861/-01)
    • Light source wavelength: 375 nm
    • Output power: 10 mW/cm2
    • Irradiation time: 0.1 s to 3600 s
  • Reagent dispensing (C13796 + A10490 + A9861)
  • Test tubes compatible (C13796 + A9860 + A9861-01)

Setup diagrams

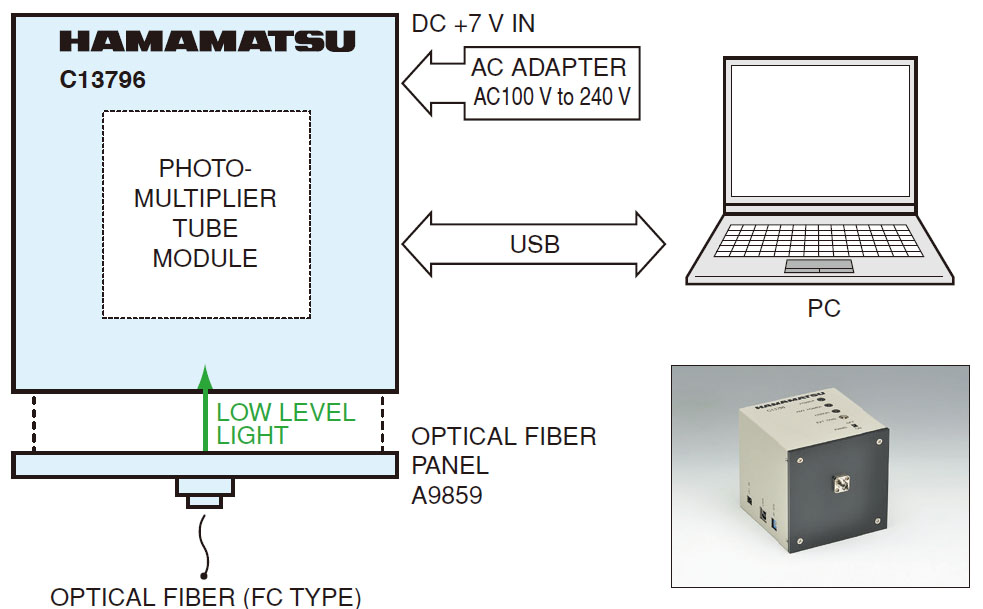

C13796 + A9859 (Optical fiber panel)



Major applications: Various measurements using optical fiber (FC type)

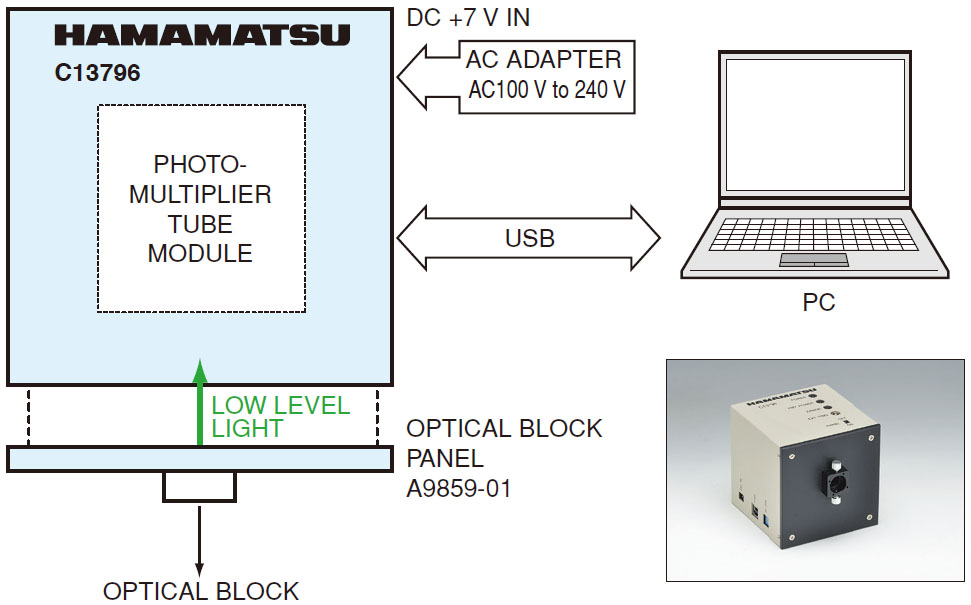

C13796 + A9859-01 (Optical block panel)



Major applications: Various measurements using optical blocks

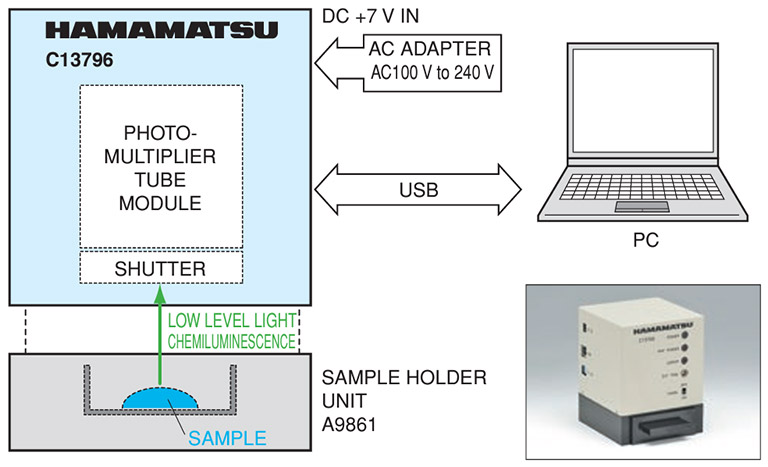

C13796 + A9861 (Sample holder unit)



Major applications: Bioluminescence, chemiluminescence

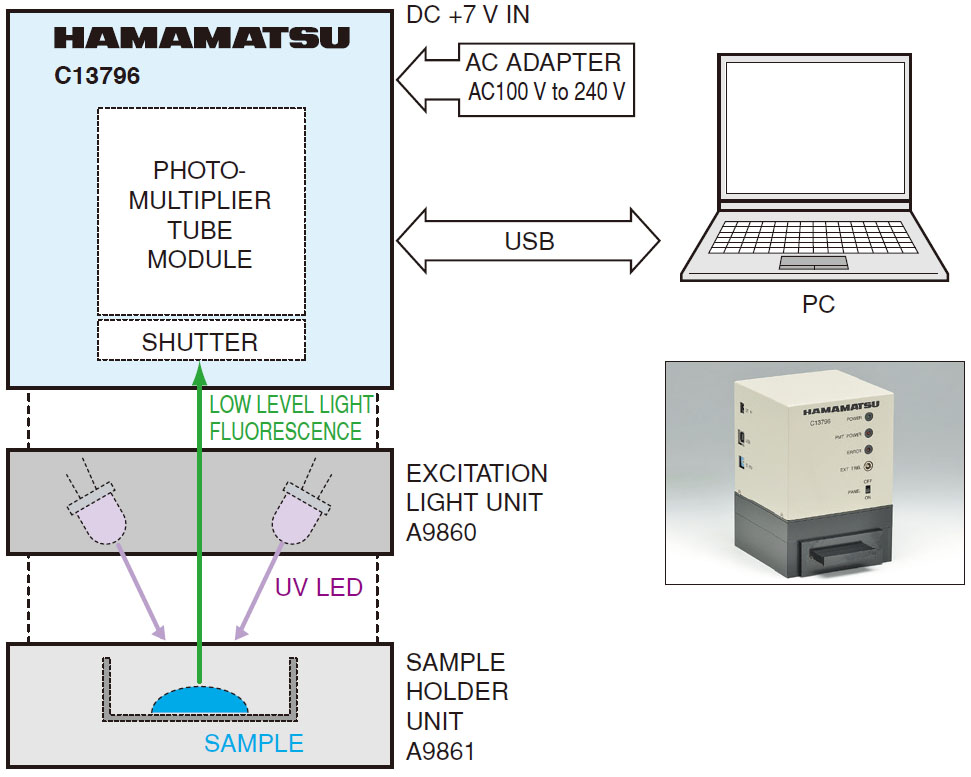

C13796 + A9860 + A9861 (Excitation light source unit + Sample holder unit)



Major applications: Fluorescence life time, delayed fluorescence

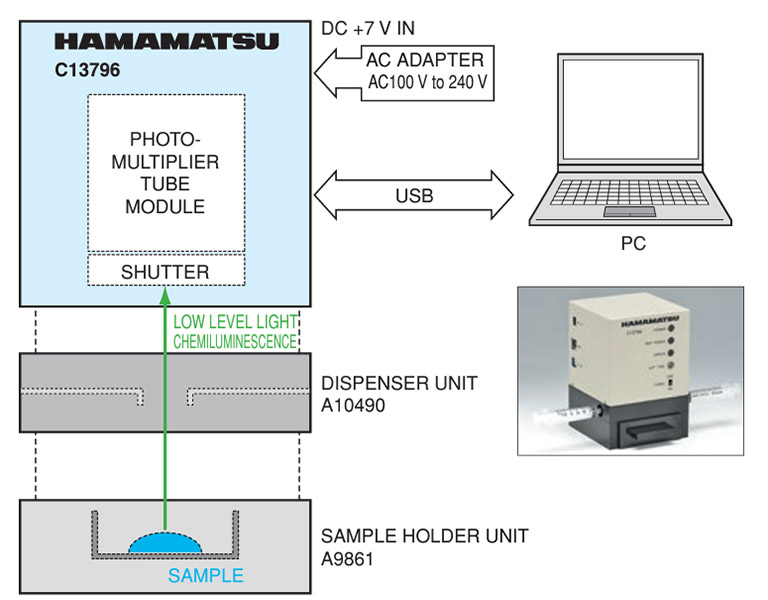

C13796 + A10490 + A9861 (Dispenser unit + Sample holder unit)



Major applications: Chemiluminescence using syringe

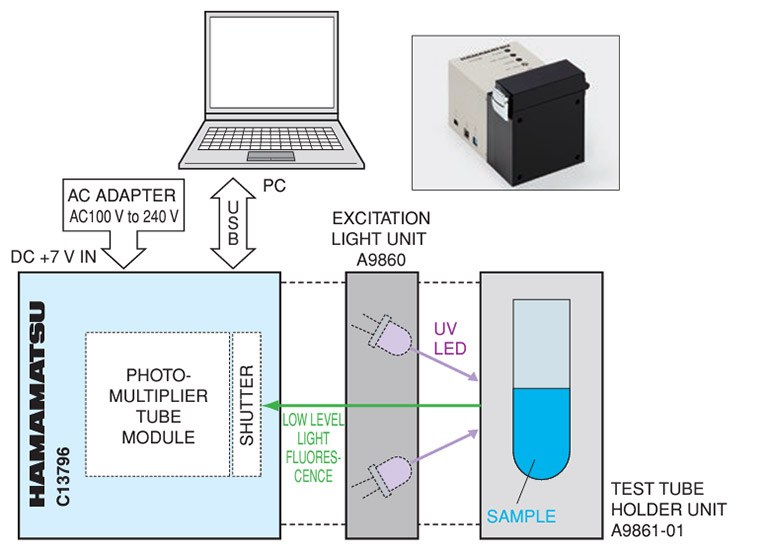

C13796 + A9860 + A9861-01 (Excitation light source unit + Test tube holder unit)



Major applications: Fluorescence life time, delayed fluorescence

Specifications

C13796-A1*(with AC adaptor for Japan) * A2: For North America, A3: For Europe

Parameter Description / Value Unit
Detection method Photon counting method -
Spectral response range 300 to 650 nm
Photocathode size φ22 mm
Max. count rate at 10 % count loss 3 × 106 s-1
Counter gate time 0.001 to 10(1, 2, 5 Steps) s
Dark count (Typ. at +20 ℃) 50 s-1
Counter capacity 32 bit/gate
Trigger section Trigger signal input mode External trigger, software trigger
Trigger signal level TTL edge
Trigger signal pulse width 100 or longer ns
Input voltage (DC) +7 (supplied from AC adapter) V
Input voltage (AC) to supplied AC adapter 100 V to 240 V (auto switchable), single phase 50 Hz/60 Hz -
Operating temperature +5 to +40
Operating humidity Below 80 (no condensation) %
Storage temperature 0 to +50
Storage humidity Below 85 (no condensation) %
OS Windows® 10 Pro / 11 Pro -
Interface USB 1.1 -

Accessories (Supplied): ●CD-ROM(control software) ●USB cable (2.0 m) ●AC adapter ●Cable for external trigger (1.5 m)

C13796 + A9859 (Optical fiber panel)

Parameter Description / Value Unit
Optical fiber adapter FC type (HRFC-R1/Hirose) -
Distance to photocathode 15.0 (from fiber end) mm
Weight Approx. 1.1 kg

C13796 + A9859-01 (Optical block panel)

Parameter Description / Value Unit
Suitable optical block V-groove type -
Distance to photocathode 17.3 mm
Weight Approx. 1.1 kg

C13796 + A9861 (Sample holder unit)

Parameter Description / Value Unit
Effective size of sample compartment (W × D × H) 50 × 50 × 15 mm
Distance to photocathode 26.5 (from bottom of sample compartment) mm
Weight Approx. 1.4 kg

C13796 + A9860 + A9861 (Excitation light source unit + Sample holder unit)

Parameter Description / Value Unit
Excitation light source (UV LED) Wavelength·Output power 375 nm・10 mW/cm2 -
Irradiation time 0.1 to 3600 s
Irradiation area φ10 (center of sample compartment) mm
Effective size of sample compartment (W × D × H) 50 × 50 × 15 mm
Distance to photocathode 43.5 (from bottom of sample compartment) mm
Weight Approx. 1.6 kg

C13796 + A10490 + A9861 (Dispenser unit + Sample holder unit)

Parameter Description / Value Unit
Suitable syringe capacity 5(Terumo® syringe) *1 ml
Needle size Outer diameter: φ1 mm, inner diameter: φ0.6 mm -
Recommended gas flow tube Outer diameter: φ6 mm (Black tube is recommended for light shielding)
Distance to photocathode 43.5 mm
Weight Approx. 1.6 kg

NOTE: *1 Please prepare at customer side.

C13796 + A9860 + A9861-01 (Excitation light source unit + Test tube holder unit)

*Test tube: A17023-01 (Sold separately)

Parameter Description / Value Unit
Excitation light source (UV LED) Wavelength·Output power 375 nm・10 mW/cm2 -
Irradiation time 0.1 to 3600 s
Irradiation area φ10 (center of test tube) mm
Stowable test tube size φ25.4 x 80 (H) mm
Max. opening angle 120 °
Distance to photocathode 41.5 (from center of test tube) mm
Weight Approx. 1.8 kg

Dimensional outlines (Unit: mm)

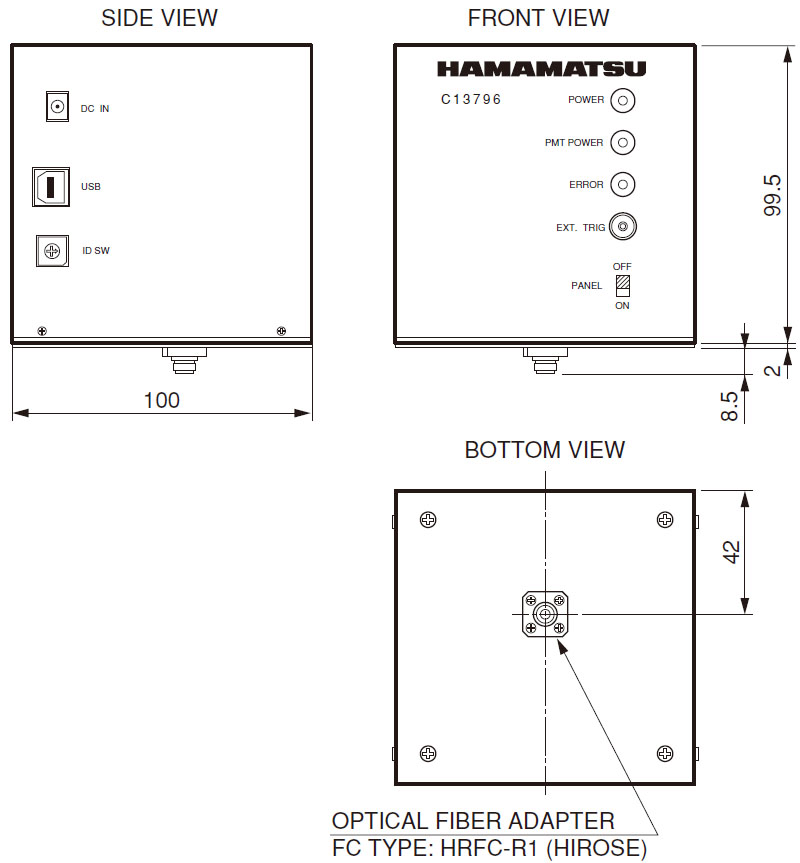

C13796 + A9859

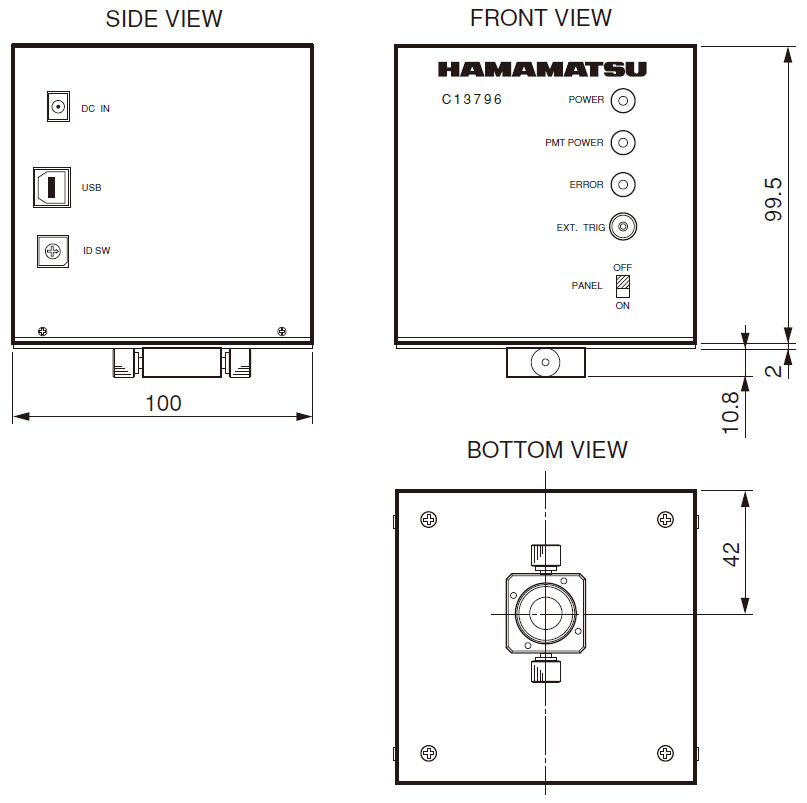

C13796 + A9859-01

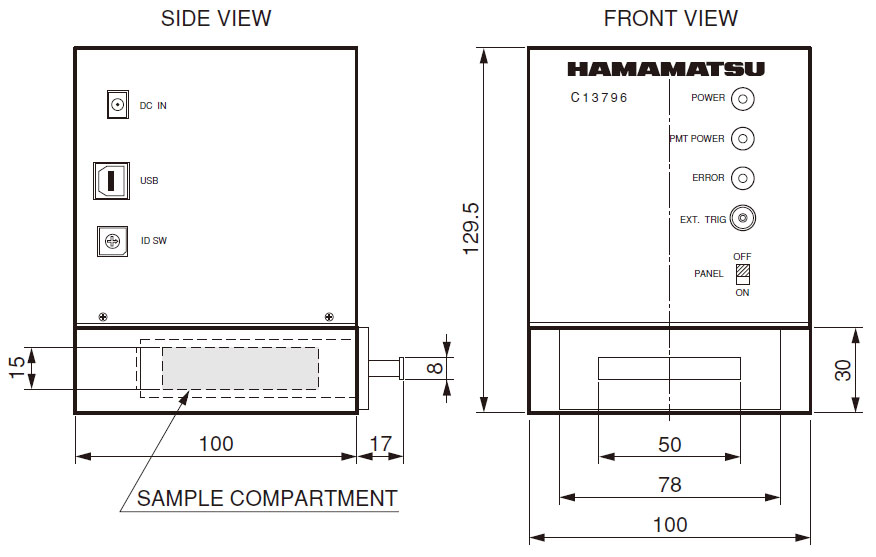

C13796 + A9861

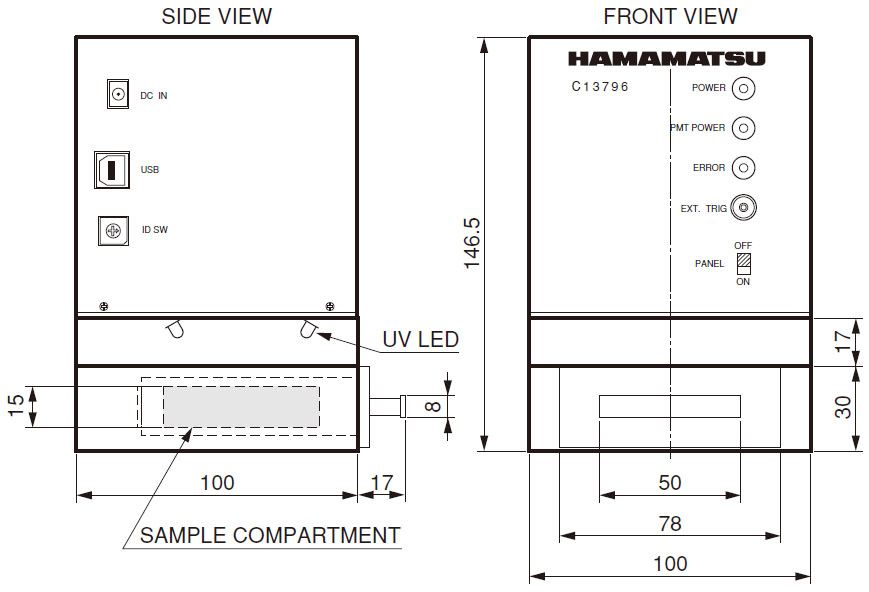

C13796 + A9860 + A9861

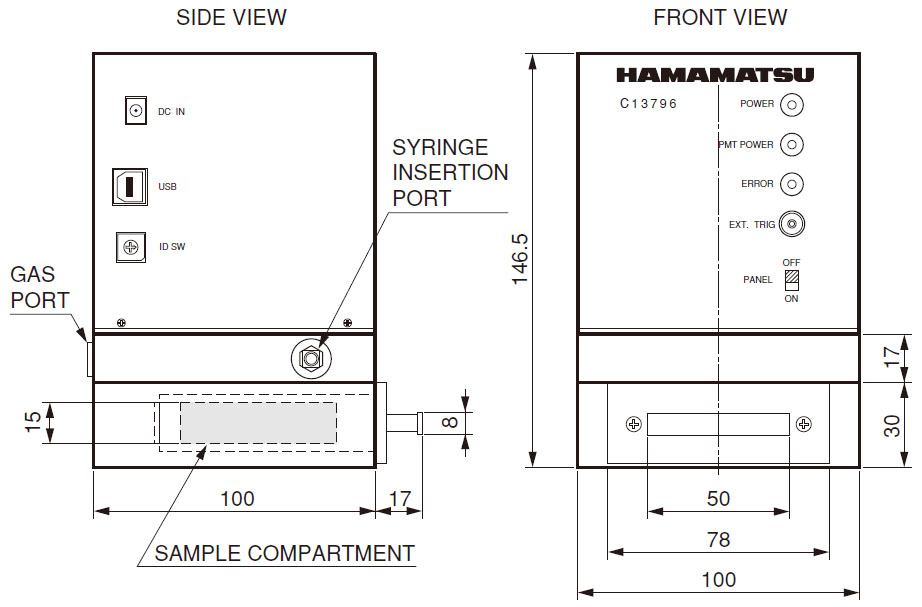

C13796 + A10490 + A9861

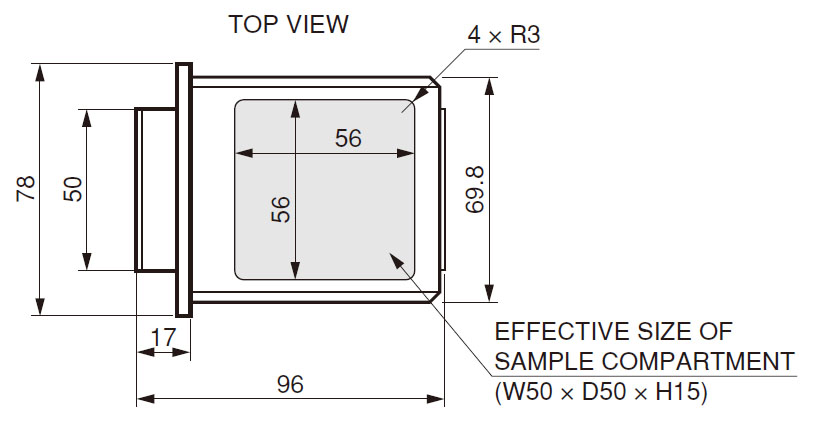

A9861 Sample compartment tray

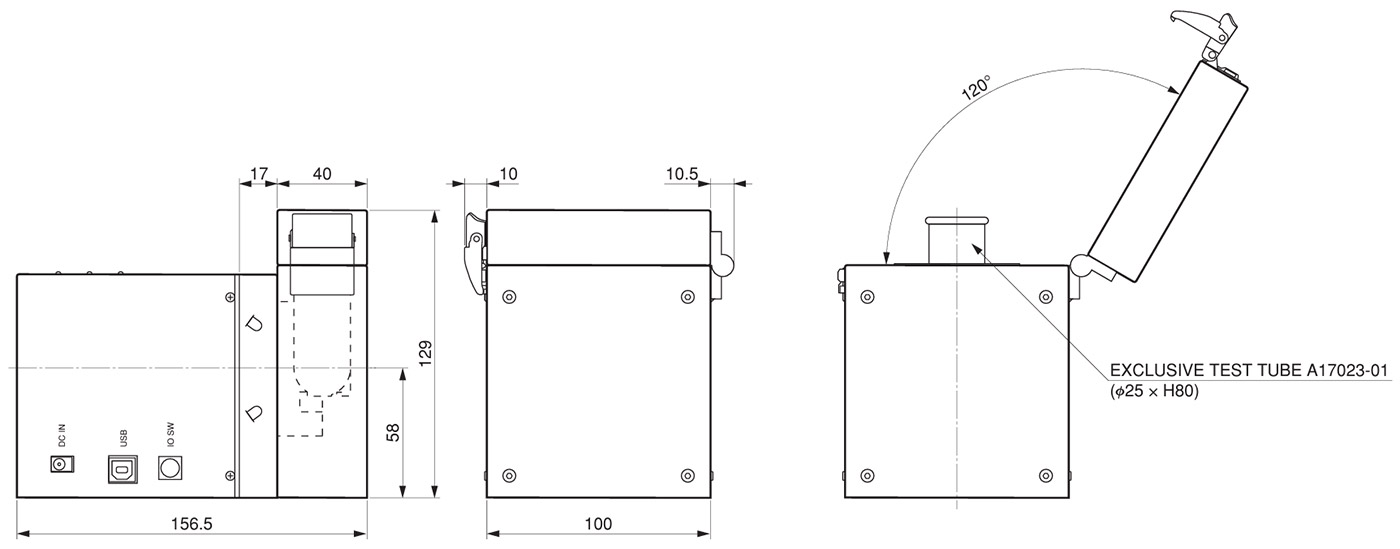

C13796 + A9860 + A9861-01

Optional modular units (Sold separately)

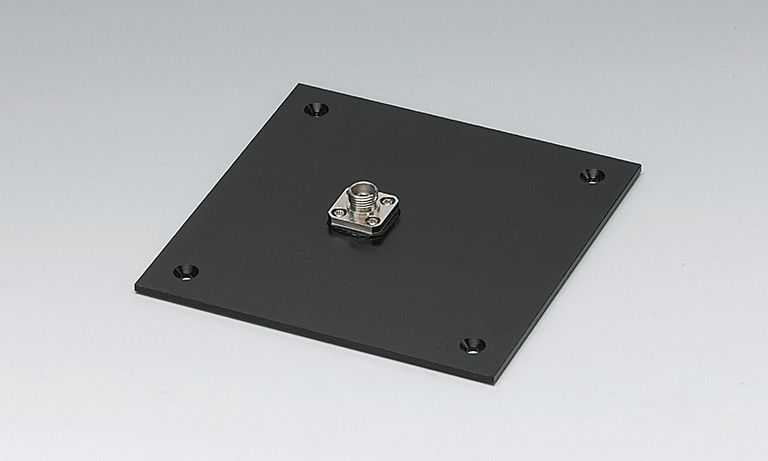

Optical fiber panel A9859

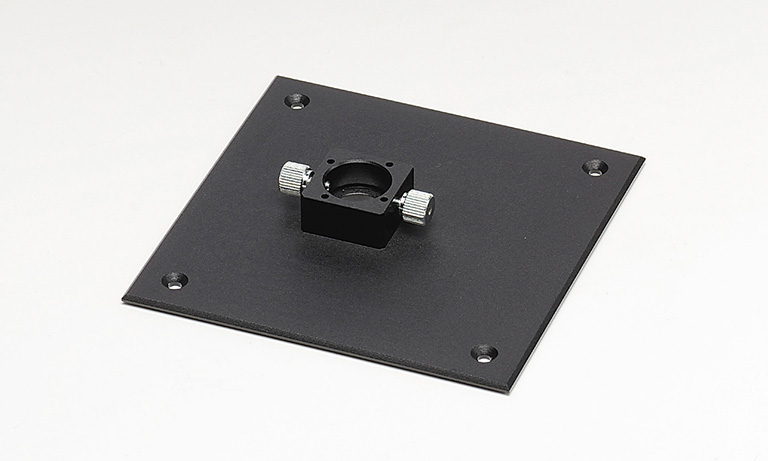

Optical block panel A9859-01*

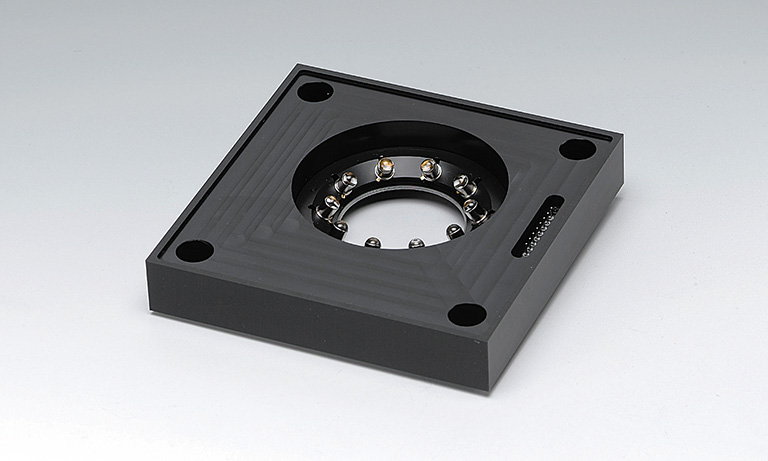

Excitation light source unit A9860

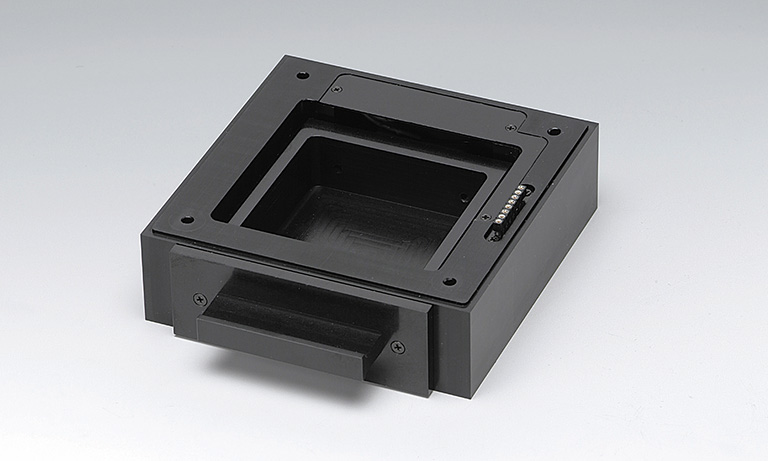

Sample holder unit A9861

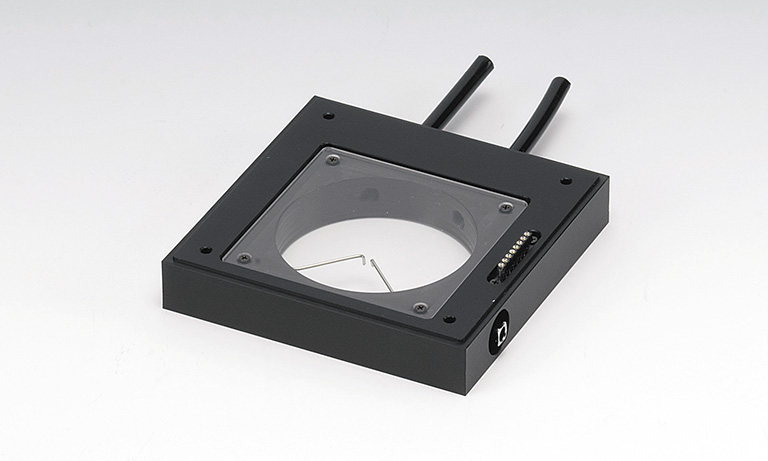

Dispenser unit A10490

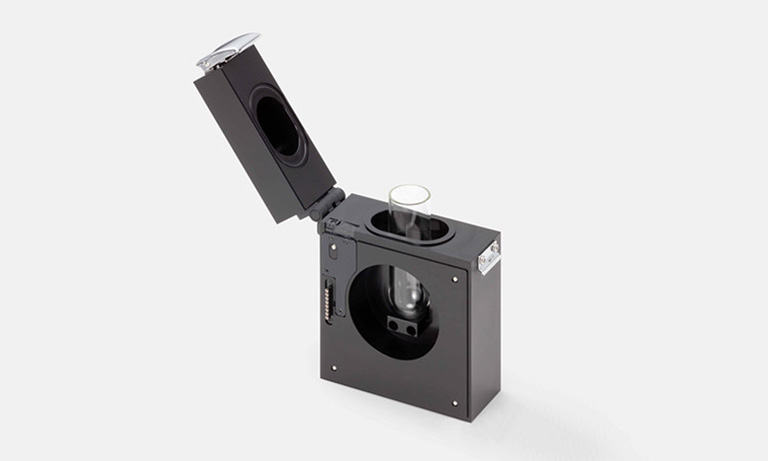

Test tube holder unit A9861-01

Test tube A17023-01



* Optical block panels can be combined with various types of optical blocks. Optical blocks are modular units that accommodate optical components such as band-pass filters designed for use with this C13796 photon detection unit.
Optical blocks

Contact us for more information.
