Hybrid photo detector

R10467U-40

The HPD series are high-speed responce photodetectors with a built-in photocathode and AD(Avalanche diode).

The R10467U-40 is GaAsP photocathode HPD with spectral response range from 300 nm to 740 nm.

Specifications

 Parameter R10467U-40 Unit
Spectral response 300 to 740 nm
Photocathode GaAsP
Window material Borosilicate glass
Window type Flat
Effective area φ3 mm
Rating Photocathode voltage Max. -8500 V
Avalanche diode (AD) reverse bias voltage Max. Vb -10 V
Average photocathode current Max. 200 pA
Quantum efficiency (at 520 nm) Typ. 45 %
AD leakage current Typ. 150 pA
Gain Typ. 1.2 x 105
Time response Rise time Typ. 400 ps
Fall time Typ. 400 ps
Width Typ. 600 ps
T.T.S (Transit Time Spread) (FWHM) 90 ps
Operating ambient temperature +15 to +35
Storage temperature 0 to +40

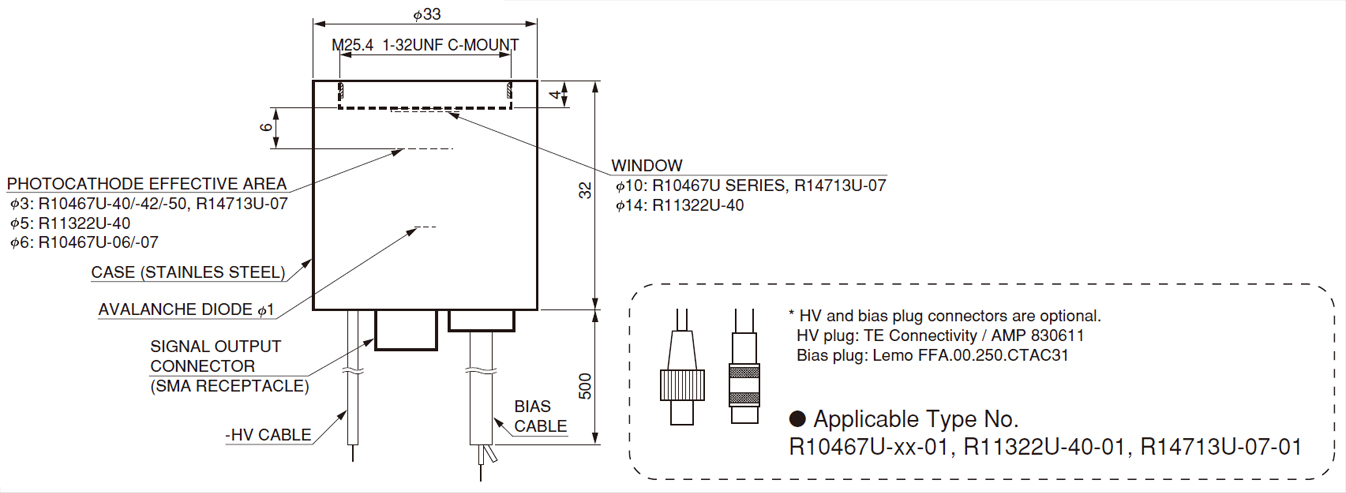

Dimensional outlines (Unit mm)
