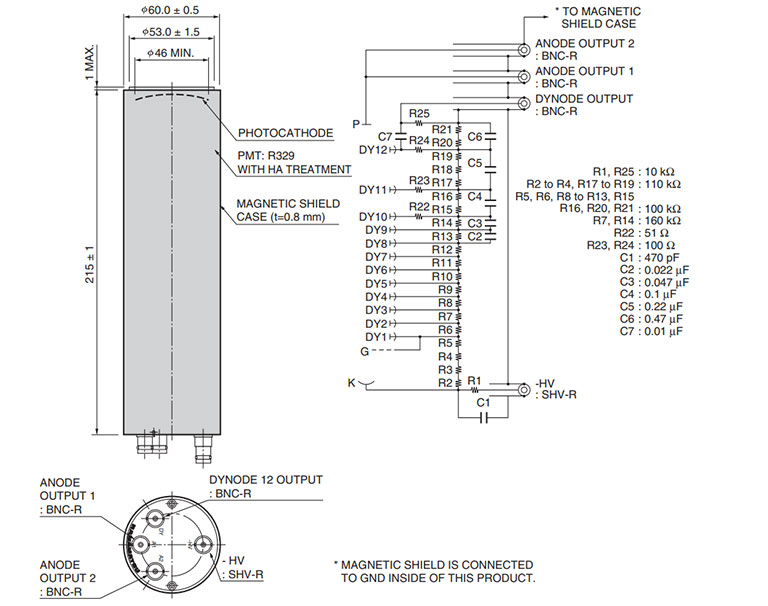

Photomultiplier tube assembly
|Assembly Size||Dia.60 mm|
|PMT Tube Size||51 (2) mm|
|Built-in PMT Type No.||R329-02|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.46 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||400K|
|Window Material||Borosilicate glass|
|[Max. Rating] Anode to Cathode Voltage||-2700 V|
|[Max. Rating] Average Anode Current||1.23 mA|
|Anode to Cathode Supply Voltage||-2000 V|
|[Cathode] Luminous Sensitivity Typ.||90 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||10.5|
|[Anode] Luminous Sensitivity Typ.||270 A/lm|
|[Anode] Gain Typ.||3.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||10 nA|
|[Anode] Dark Current (after 30min.) Max.||100 nA|
|[Time Response] Rise Time Typ.||2.7 ns|
|[Time Response] Transit Time Typ.||40 ns|
|[Time Response] Transit Time Spread Typ.||1.1 ns|
|[Anode] Pulse Linearity (2% deviation)||80 mA|
|[Anode] Pulse Linearity (5% deviation)||110 mA|
