Photomultiplier tube module

H11461-09

The H11461 series photomultiplier tube modules consist of a 28-mm (1-1/8") diameter side-on photomultiplier tube and a high-voltage power supply. These sideon photomultiplier tubes have long been used for spectroscopic applications and provide high gain and high sensitivity. Six types of photomultiplier tubes are provided as standard lineups to meet various needs for spectral response range. The H11461P-01 and H11461P-11 are selected as low dark count types ideal for photon counting and low-light-level measurement.

Photocathode Area Shape Square
Photocathode Area Size 4 mm x 20 mm
Wavelength (Short) 185 nm
Wavelength (Long) 320 nm
Wavelength (Peak) 230 nm
Dimension (W x H x D) 38.0 mm x 95.0 mm x 50.0 mm
Input Voltage +4.5 V to +5.5 V
Max. Input Voltage 6 V
Max. Input Current 3.5 mA
Max. Output Signal Current 100 μA
Max. Control Voltage 1.2 V
Recommended Control Voltage Adjustment Range +0.5 V to +1.1 V
[Cathode] Radiant Sensitivity Typ. 62 mA/W
[Anode] Radiant Sensitivity Typ. 6.2 x 105 A/W
[Anode] Dark Current (after 30min.) Typ. 1 nA
[Anode] Dark Current (after 30min.) Max. 10 nA
[Time Response] Rise Time Typ. 2.2 ns
Ripple Noise (peak to peak) Max. 0.3 mV
Settling Time Max. 14 s
Operating Ambient Temperature +5 ℃ to +50 ℃
Storage Temperature -20 ℃ to +50 ℃
Weight 225 g

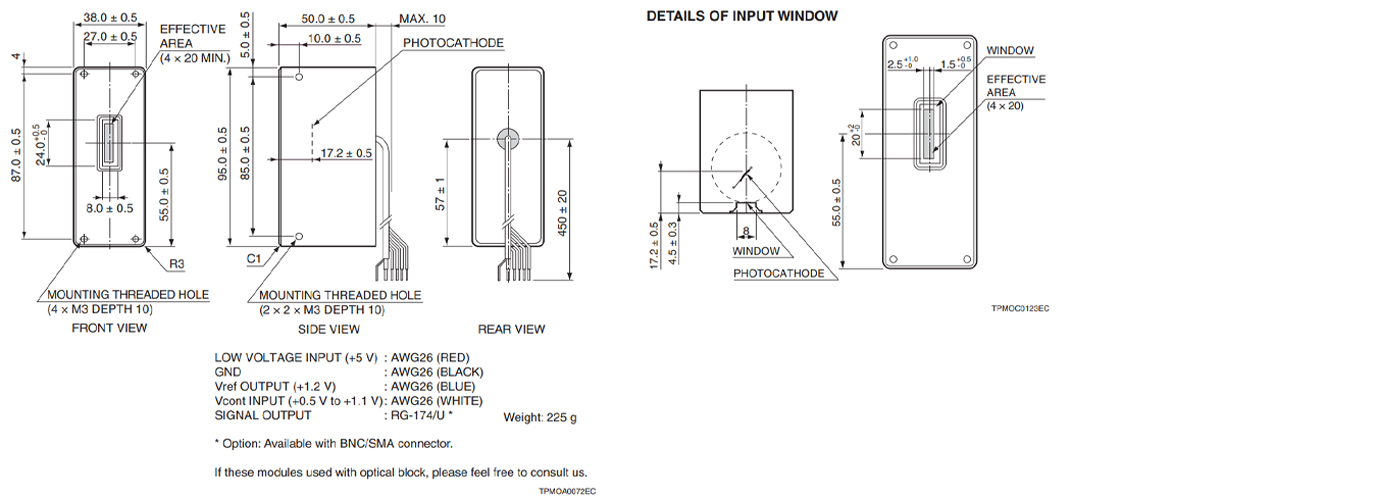

Dimensional outline (Unit: mm)
