Photomultiplier tube module
The H11900 and H11901 series are photosensor modules containing a metal package PMT and a high-voltage power supply circuit. The built-in PMT uses a metallic package with the same diameter as a TO-8 metal package used for semiconductor photodetectors. Despite the small size nearly equal to photodiodes, this PMT delivers high gain, wide dynamic range, and high-speed response. Hamamatsu also provides "P" type with low dark count selected for photon counting measurement. The H11900 series are lead pin output type, while the H11901 are flexible cable output type.
+5V input type H10720/H10721 series are available.
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.8 mm|
|Wavelength (Short)||230 nm|
|Wavelength (Long)||700 nm|
|Wavelength (Peak)||400 nm|

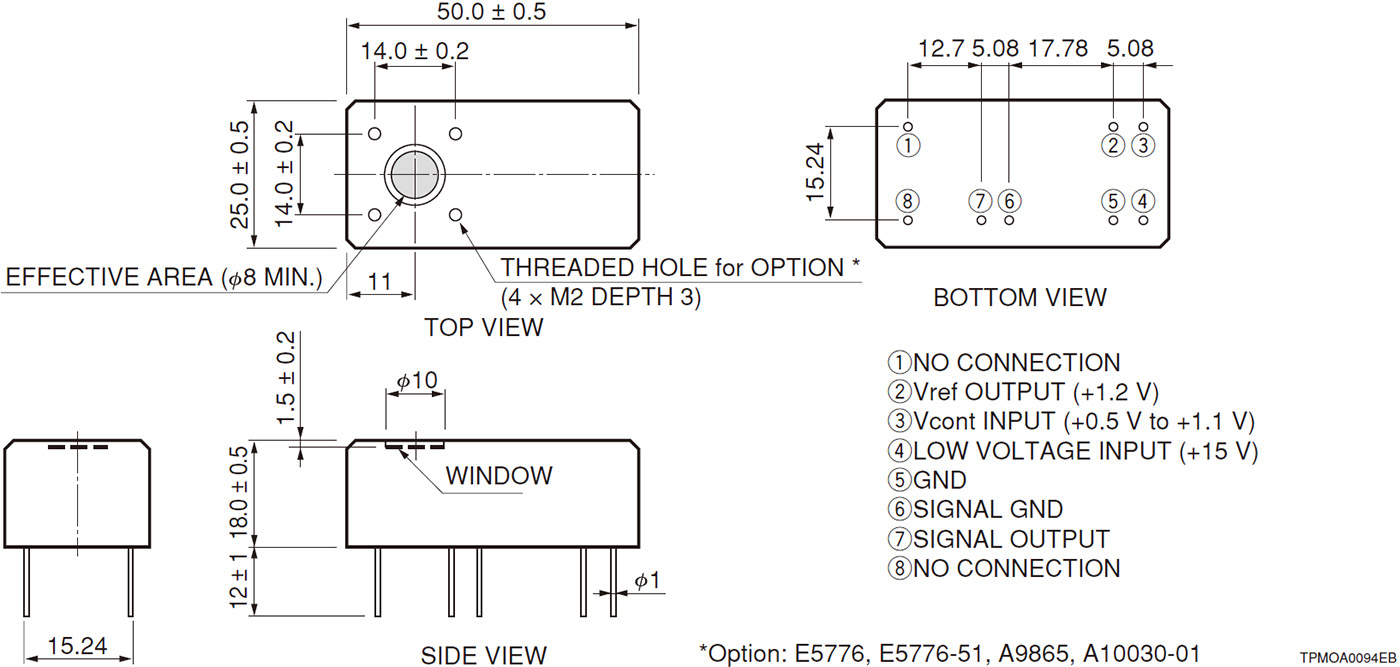

|Dimension (W x H x D)||50.0 x 25.0 x 18.0 mm|
|Input Voltage||+11.5 to +15.5 V|
|Max. Input Voltage||18 V|
|Max. Input Current||12 mA|
|Max. Output Signal Current||100 μA|
|Max. Control Voltage||+1.1 (Input impedance 30 k-ohm) V|
|Recommended Control Voltage Adjustment Range||+0.5 to +1.1 (Input impedance 30 k-ohm) V|
|[Cathode] Luminous Sensitivity Min.||80 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||105 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||13.5|
|[Cathode] Radiant Sensitivity Typ.||110 mA/W|
|[Anode] Luminous Sensitivity Min||80 A/lm|
|[Anode] Luminous Sensitivity Typ.||210 A/lm|
|[Anode] Radiant Sensitivity Typ.||2.2 x 105 A/W|
|[Anode] Dark Current (after 30min.) Typ.||1 nA|
|[Anode] Dark Current (after 30min.) Max.||10 nA|
|[Anode] P Type Dark Count Typ.||50 s-1|
|[Anode] P Type Dark Count Max.||100 s-1|
|[Time Response] Rise Time Typ.||0.57 ns|
|Ripple Noise (peak to peak) Max.||0.6 mV|
|Settling Time Max.||0.2 s|
|Operating Ambient Temperature||+5 to +50 ℃|
|Storage Temperature||-20 to +50 ℃|
