Photomultiplier tube module
The H13320 series photomultiplier tube modules contain a highvoltage power supply circuit and a 13-mm (1/2") diameter sideon photomultiplier tube in a compact aluminum housing. Its photocathode has a reflection mode that delivers high quantum efficiency at wavelengths above 600 nm, an adequate gain of up to 107 and fast time response. These modules are suitable for integration to portable devices because they are low power consumption and can be operated by dry battery.
|Photocathode Area Shape||Square|
|Photocathode Area Size||3.7 x 13.0 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||340 nm|

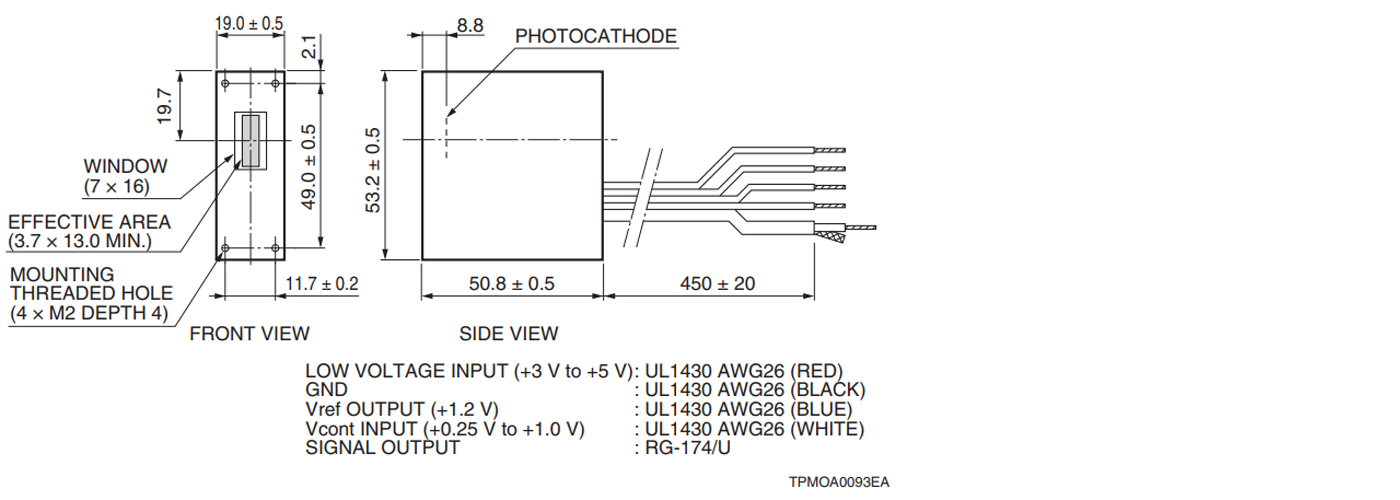

|Dimension (W x H x D)||19.0 x 53.2 x 50.8 mm|
|Input Voltage||+2.8 to +5.5 V|
|Max. Input Voltage||5.5 V|
|Max. Input Current||2.7 mA|
|Max. Output Signal Current||10 μA|
|Max. Control Voltage||+1.2 (Input impedance : 1MΩ) V|
|Recommended Control Voltage Adjustment Range||+0.25 to +1.0 (Input impedance : 1MΩ) V|
|[Cathode] Luminous Sensitivity Min.||20 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||40 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||5|
|[Cathode] Red/White Ratio Typ.||-|
|[Cathode] Radiant Sensitivity Typ.||48 mA/W|
|[Anode] Luminous Sensitivity Min||50 A/lm|
|[Anode] Luminous Sensitivity Typ.||300 A/lm|
|[Anode] Radiant Sensitivity Typ.||3.6 x 105 A/W|
|[Anode] Dark Current (after 30min.) Typ.||0.5 nA|
|[Anode] Dark Current (after 30min.) Max.||5 nA|
|[Time Response] Rise Time Typ.||1.4 ns|
|Ripple Noise (peak to peak) Max.||0.5 mV|
|Settling Time Max.||14 s|
|Operating Ambient Temperature||+5 to +50 ℃|
|Storage Temperature||-20 to +50 ℃|
