Photomultiplier tube module

H13543-01

The H13543-01 is a photomultiplier tube module containing a 25-mm (1") square metal package photomultiplier tube, and a high-voltage power supply circuit.

Photocathode Area Shape Square
Photocathode Area Size 18 mm x 18 mm
Wavelength (Short) 300 nm
Wavelength (Long) 880 nm
Wavelength (Peak) 400 nm
Dimension (W x H x D) 33.0 mm x 33.0 mm x 50.0 mm
Input Voltage +4.5 V to +5.5 V
Max. Input Voltage 6 V
Max. Input Current 5 mA
Max. Output Signal Current 100 μA
Max. Control Voltage +0.9 V (Input impedance 1 MΩ)
Recommended Control Voltage Adjustment Range +0.4 V to +0.8 V (Input impedance 1 MΩ)
[Cathode] Luminous Sensitivity Min. 150 μA/lm
[Cathode] Luminous Sensitivity Typ. 200 μA/lm
[Cathode] Red/White Ratio Typ. 0.2
[Cathode] Radiant Sensitivity Typ. 65 mA/W
[Anode] Luminous Sensitivity Min 50 A/lm
[Anode] Luminous Sensitivity Typ. 400 A/lm
[Anode] Radiant Sensitivity Typ. 1.3 x 105 A/W
[Anode] Dark Current (after 30min.) Typ. 10 nA
[Anode] Dark Current (after 30min.) Max. 50 nA
[Time Response] Rise Time Typ. 1.6 ns
Ripple Noise (peak to peak) Max. 0.5 mV
Settling Time Max. 10 s
Operating Ambient Temperature +5 ℃ to +50 ℃
Storage Temperature -20 ℃ to +50 ℃
Weight 110 g

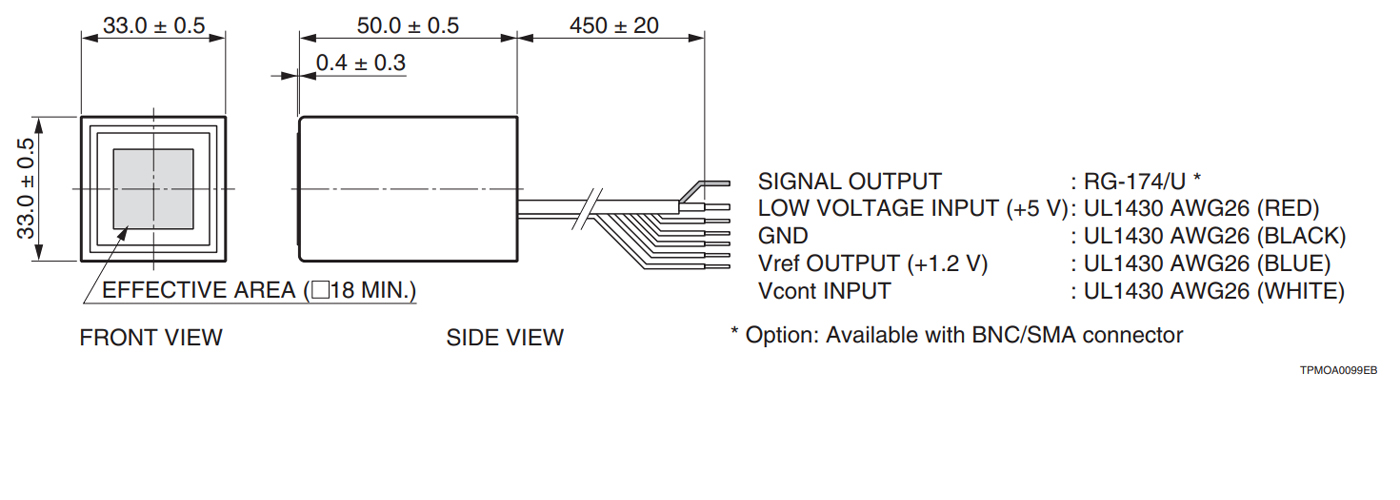

Dimensional outline (unit: mm)
