Photomultiplier tube module

H13543-20

The H13543-20 is a photosensor module containing a 25-mm (1") square metal package photomultiplier tube, and a high-voltage power supply circuit.

Photocathode Area Shape Square
Photocathode Area Size 18 x 18 mm
Wavelength (Short) 300 nm
Wavelength (Long) 920 nm
Wavelength (Peak) 530 nm
Dimension (W x H x D) 33.0 x 33.0 x 50.0 mm
Input Voltage +4.5 to +5.5 V
Max. Input Voltage 6 V
Max. Input Current 5 mA
Max. Output Signal Current 100 μA
Max. Control Voltage +0.9 (Input impedance 1 M-ohm) V
Recommended Control Voltage Adjustment Range +0.4 to +0.8 (Input impedance 1 M-ohm) V
[Cathode] Luminous Sensitivity Min. 350 μA/lm
[Cathode] Luminous Sensitivity Typ. 500 μA/lm
[Cathode] Red/White Ratio Typ. 0.4
[Cathode] Radiant Sensitivity Typ. 78 mA/W
[Anode] Luminous Sensitivity Min 100 A/lm
[Anode] Luminous Sensitivity Typ. 1000 A/lm
[Anode] Radiant Sensitivity Typ. 1.6 x 105 A/W
[Anode] Dark Current (after 30min.) Typ. 20 nA
[Anode] Dark Current (after 30min.) Max. 50 nA
[Time Response] Rise Time Typ. 1.6 ns
Ripple Noise (peak to peak) Max. 0.5 mV
Settling Time Max. 10 s
Operating Ambient Temperature +5 to +50 ℃
Storage Temperature -20 to +50 ℃
Weight 110 g

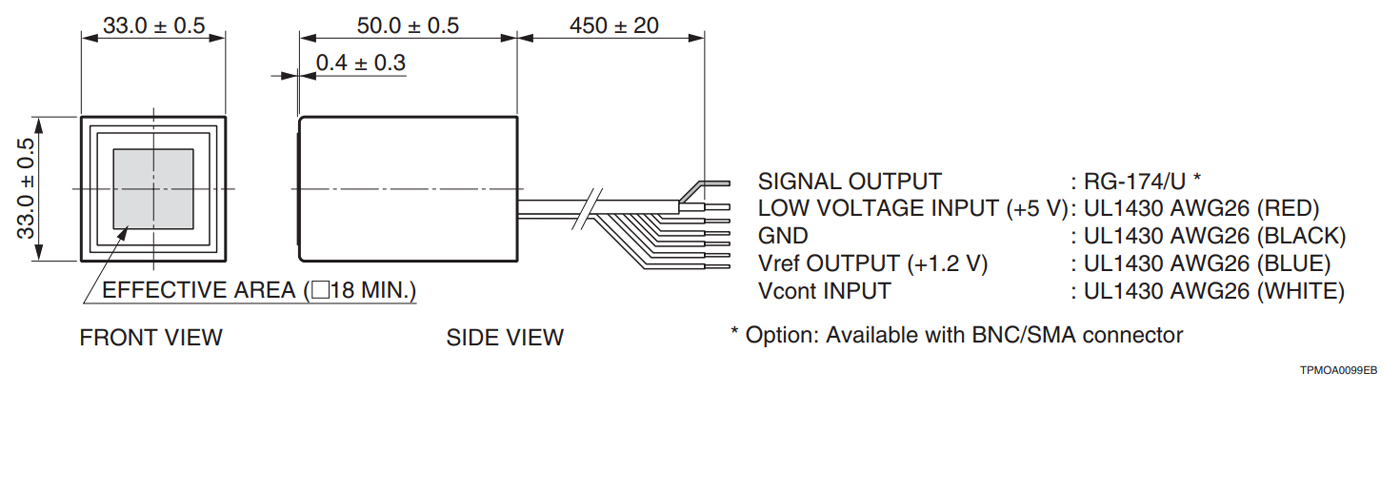

Dimensional outline (unit: mm)
